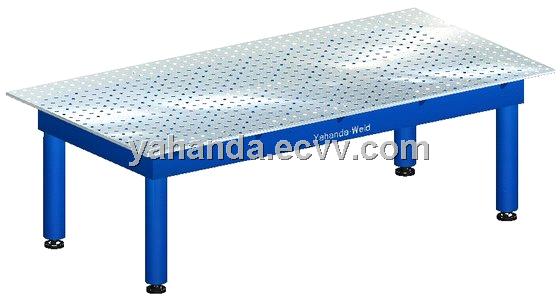

2D Welding Table (2000x1000x150mm)

Supply Ability:	150 Set/Sets per Month
Shipping:	FOB Xiamen or Shenzhen
Payment Terms:	T/T, Western Union, Other, AFEX

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Be packed in wooden case per piece or customized

Quick Details

Type: Welding Positioner
After-sales Service Provided: Engineers available to service machinery overseas
Weight: 450kgs
Dimensions: 2000x1000x150mm
Usage: Fixturing weldments on it by clamping accessories
Model Number: YHD28ES2010
Brand Name: YAHANDA
Condition: New
Material: Steel
Working surface: 1
Hoel size: 16mm & 28mm

Specifications

The table is made of welding steel and has 1 precision machined working surface and it is reinforced on the underneath side by ribs.
2D steel table is used for light and simple fixturing weldments. Although it has only one working surface, Most of welding components can also be assembled on it. Legs can be equiped according to request.
Specification(mm) Part No. (D28) Specification(mm) Part No. (D16)
1000×1000x150 YHD28ES1010 1000x1000x120 YHD16ES1010
2000×1000x150 YHD28ES2010 1200x1200x120 YHD16ES1212
2400×1200x150 YHD28ES2412 1500x1500x120 YHD16ES1515
1200×1200x150 YHD28ES1212 2000x1000x120 YHD16ES2010
1500×1500x150 YHD28ES1515 2400x1200x120 YHD16ES2412
3000×1500x150 YHD28ES3015
