Home >Products Catalog > Beam Light Led Moving Head > 200w 5r Sharpy Moving Head Beam Light for Stage Lighting Equipment Wedding Light Disco Effect

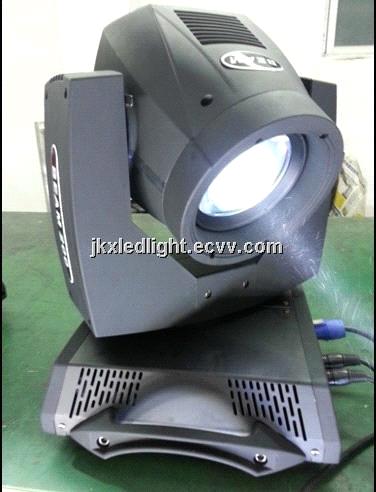

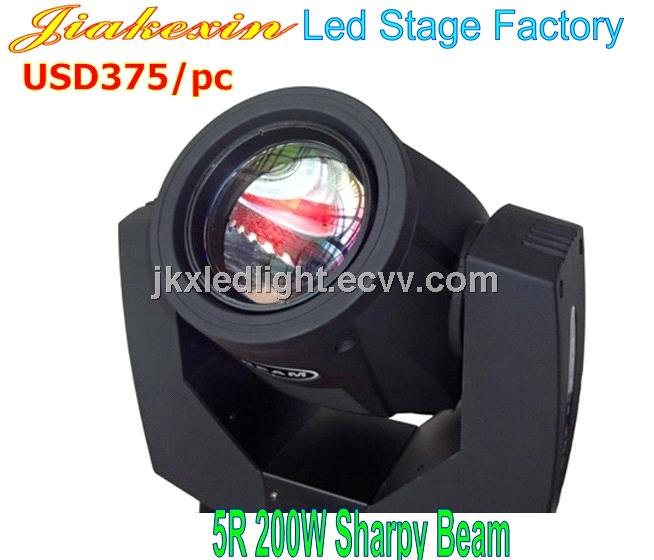

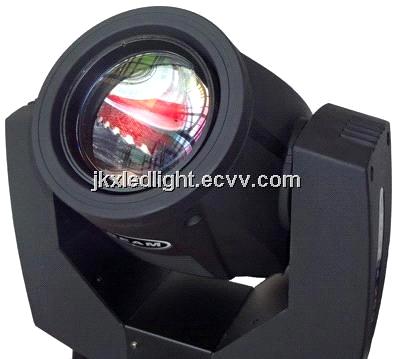

200w 5r Sharpy Moving Head Beam Light for Stage Lighting Equipment Wedding Light Disco Effect

FOB Price:	400.00 - 401.00 USD/Piece
Supply Ability:	200 Piece/Pieces per Month
Shipping:	within 7-10days,delivery by express or sea or air can be discussed
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton packing standard flycase packing can be discussed

Quick Details

Light Source: Halogen Bulbs
Input Voltage(V): 100-240
Lamp Power(W): 189
Certification: CE,ROHS
Emitting Color: RGB
Brand Name: Jiakexin
Model Number: JKX-MH200B-01P

Specifications

POWER SUPPLIES:115/230V 50/60 Hz
INPUT POWER:350VA at 230V 50Hz
LAMP SOURCE:Discharge lamp with a short arc burner in a reflector system
- Type: Taiwan Yodn 5R(Philips MSD Platinum 5R option)
-- Output Lamp power: 189W
- Colour temperature: 8,000 K
- Luminous flux: 7,950 lm
- Average life: 2,000 h
OPTICS:
3-lens HQ optical group (patent pending)
Zoom: from zero to 3.8°
Focus: electronic
Light output at 20 meters (65 feet): 59,760 lux
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-facet rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer
CONTROL AND PROGRAMMING
Max 20 DMX 512 control channels (16CH,18CH standard)
DMX protocol signal: USITT DMX 512
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial

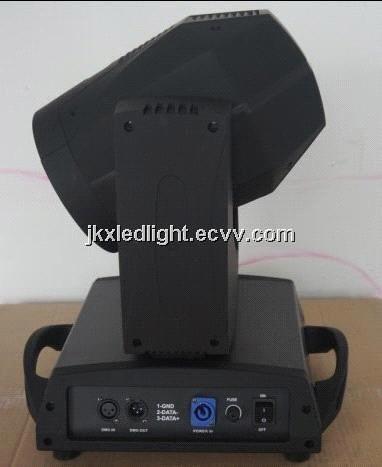

DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY

Travel:
- PAN = 540° - TILT = 250°
Maximum speeds:
- PAN = 2.45 sec
- TILT = 1.30 sec
Resolution:
- PAN = 2.11° - PAN FINE = 0.008°
- TILT = 0.98° - TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
