Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Jiangsu in China

Quick Details

Brand Name: Shennong
Model Number: LS Series

Specifications

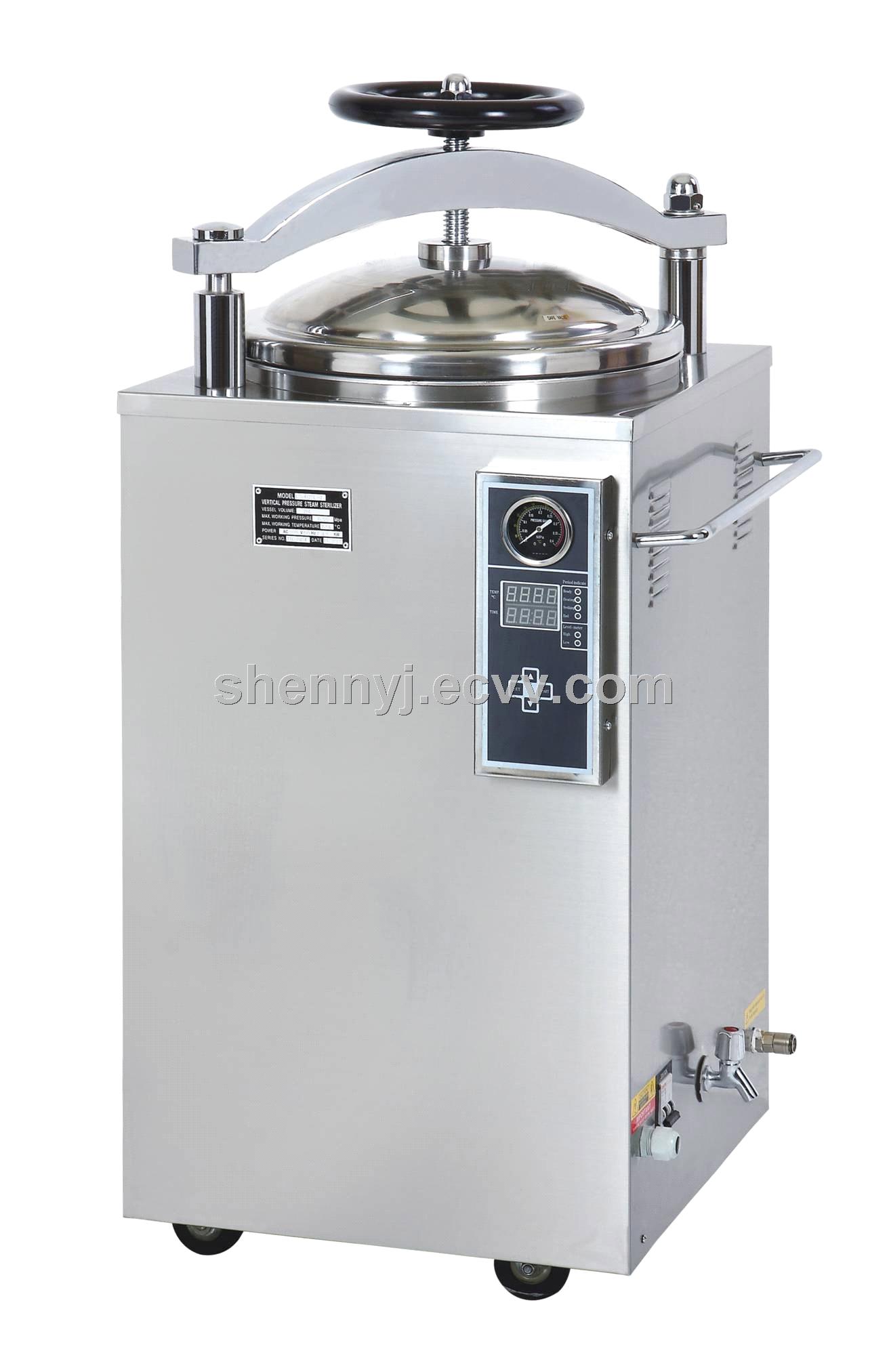

VERTICAL PRESSURE STEAM STERILIZER AUTOCLAVE
Characteristics:
l. Fully stainless steel structure
2. Hand wheel type of quick-open door structure
3. Door safety lock system
4. Digital display of working status, touch type buttons
5. Auto discharge the cool air,and steam discharging automatically after sterilization
6. Over temperature & over pressure auto-protection
7. Safe protection of water lacking
8. A safety valve is provided in order to allow excess pressure to escape ,High & ex-high pressure protection system and automatically stopping function be available
9. Self-inflating type seal
10. Automatically shut off with beep reminding after sterilization
11 .Used for sterilization of medical instruments, medical cotton products.
12. Fully stainless steel SUS304/AISI 304 -3mm
13. Possible to install drying system according request.

Technical data:

MODEL	LS-50HD	LS-75HD	LS-100HD
Sterilizing chamber volume	50L (φ340×550) mm	75L (φ400×600) mm	100L(φ440×650) mm
Working pressure	0.22Mpa	0.22Mpa	0.22Mpa
Working temperature	134℃	134℃	134℃
Adjustment of temperature	103-134℃	103-134℃	103-134℃
Timer	0-99 min	0-99 min	0-99 min
Heat average	≤± 1℃	≤± 1℃	≤± 1℃
Power	3 KW / AC220V 50Hz	4.5 KW / AC220V 50Hz	4.5 KW / AC220V 50Hz
Sterilizing plate	400×200×30 mm	400×200×30 mm	400×200×30 mm
Overall dimension	510×470×1120 mm	540×560×1120 mm	560×560×1250 mm
Package dimension	590×590×1280 mm	650×630×1280 mm	680×630×1370 mm
G. W/N.W	90/60 kg	110/85 kg	125/95 kg
