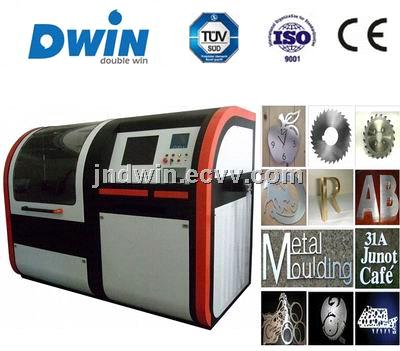

Small Scale YAG Laser Cutting Machine DW-YAG-0505
| FOB Price: | 32,000.00 - 48,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 30 days after reiceved your doposit or payment |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood box,free of fumigation |
Quick Details
- Condition: New
- Laser Type: YAG
- Applicable Material: Metal
- Cutting Thickness: 10mm( carbon steel)
- Cutting Area: 500*500mm
- Cutting Speed: 35mm/s
- CNC or Not: Yes
- Cooling Mode: Water Cooling
- Graphic Format Supported: AI,PLT,DXF,BMP,DST,DWG,LAS,DXP
- Brand Name: DWIN
- Model Number: DW-YAG-0505
- Certification: CE,ISO
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
small scale YAG laser cutting machine
Features:
1. Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting carbon steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.
2. Stainless steel below 4mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas . Good cutting effect, maximizing reducing use-cost.
3. Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing
4. Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency
5. Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching
Application:
YAG Laser cutting machine has been widely used in manufacturing billboard ,sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware , saw bits , precision metal parts ,metal artware
Applicable materials:
Stainless steel ,mild steel/carbon steel ,Copper, aluminum, alloy steel ,spring steel ,galvanized plate ,aluminum coated plate and some other alloy plate and pipe including titanium alloy etc
Technical Parameter:
|
Model
|
DW-YAG-0505
|
DW-YAG-0404
|
DW-YAG-0303
|
| Working area | 500*500mm | 400*400mm | 300*300mm |
| Max output power | 600W | 600W | 600W |
| Max Cutting thickness | 10mm( carbon steel) | 10mm( carbon steel) | 10mm( carbon steel) |
| Laser wavelength | 1064nm | 1064nm0 | 1064nm |
| Pulse frequency | 1-300HZ | 1-300HZ | 1-300HZ |
| Max Cutting speed | 35mm/s | 35mm/s | 35mm/s |
| X Y Z Positioning accuracy / X Y Z | <+-0.08mm | <+-0.08mm | <+-0.08mm |
| X Y Z re-orientation accuracy /X Y Z | <=+-0.04mm | <=+-0.04mm | <=+-0.04mm |
| Machine weight | 400KG | 390KG | 380KG |
| Cooling model | Water cooling | Water cooling | Water cooling |
| Power Supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
