Inline Filter Low Pressure Oil Filter Factory

Supply Ability:	500 Set(s) per Week
Shipping:	qingdao/tianjin/shanghai port
Payment Terms:	L/C, T/T

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard export cartons and plywood cases, seaworthy package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Weight: 10kg
Brand Name: Shengda
Condition: New
Model Number: SD LF30
Installation: As inline filter
Seals: NBR
Flow: Up to 700 L/min
Brand replacement: Hydac
Pressure: Up to 100 bar
Material of element: BN4HC, V, W/HC, P/HC, BN4AM, AM
Certificate: ISO9001
Precision: 3;5;10;20;25;50;100;200 micron

Specifications

Inline Filter LowPressure Oil Filter Housing

Construction:

the filter housings are designed in accordance with international regulations.

They consist of a filter head with screw-in filter bowl.

Standard equipment:

Port for clogging indicator in filter head

Mounting holes in the head

Pressure release/oil drain plug(LF 330 and above)

Filter Specification

Nominal Pressure	100 bar
Fatigue Strength	at normial pressure 10⁶Load cycles from 0 to nominal pressure
Temperature Range	-30°C to +100°C (SD LF660:-30°C to -10°C: P_{Max^{=75 bar)}}
Material of Filter Head	aluminum
Material of Filter Bowl	aluminum(steel on LF 660)
Type of Clogging Indicator	VM
Pressure Setting of Clogging Indicator	5 bar( others on request)
Bypass Cracking Pressure (optional)	6 bar(others on request)
Seals	NBR
Mounting	as inline filter

3. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

4. Photo

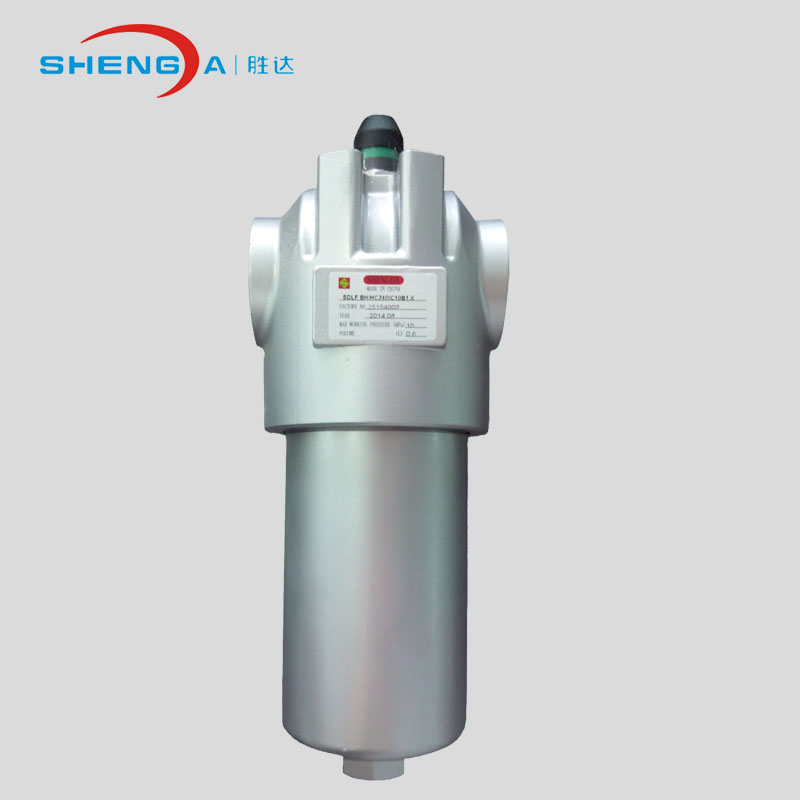

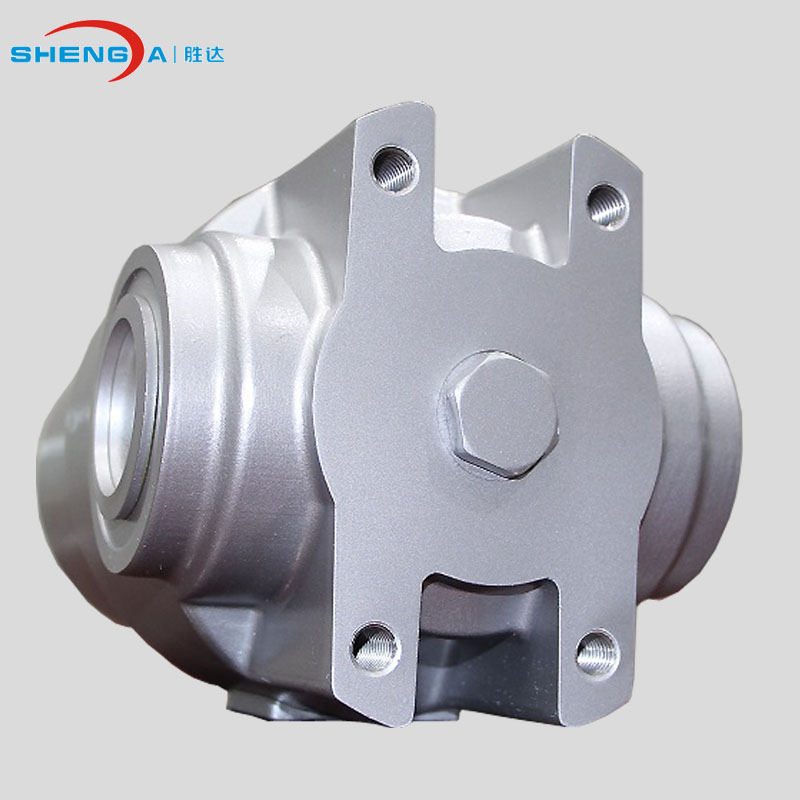

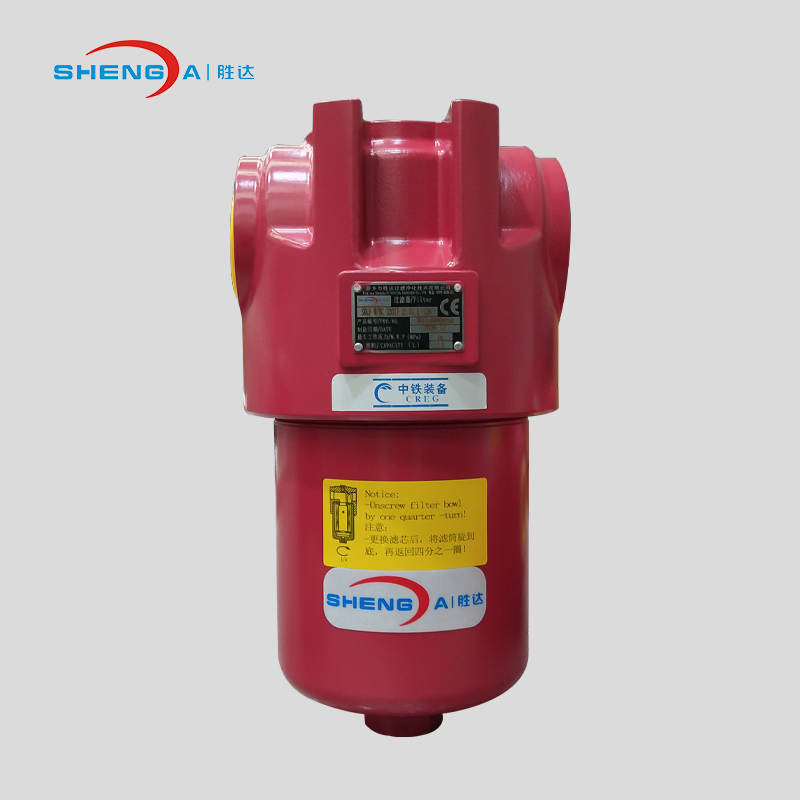

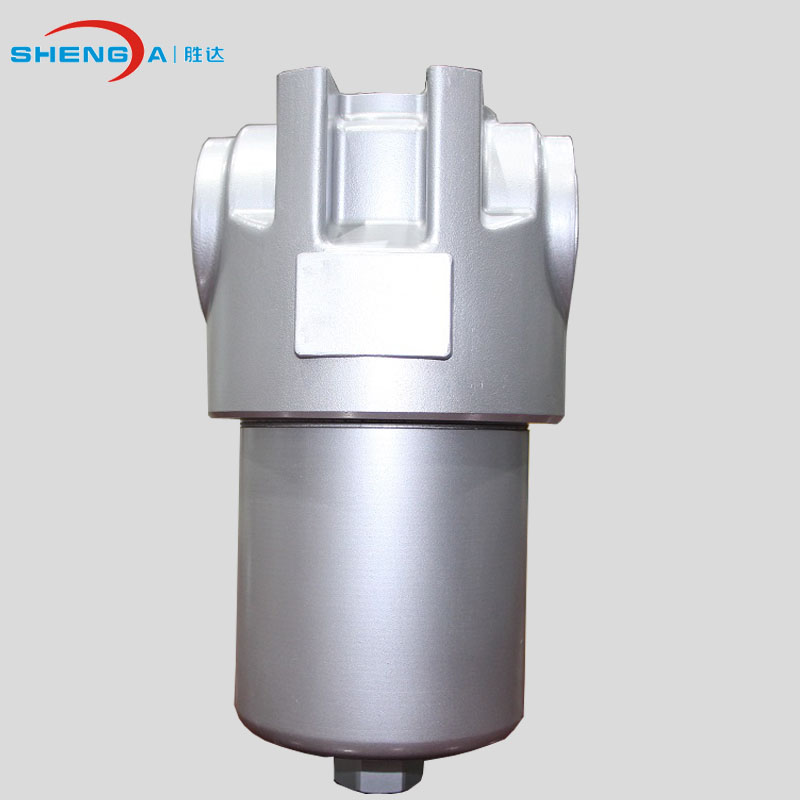

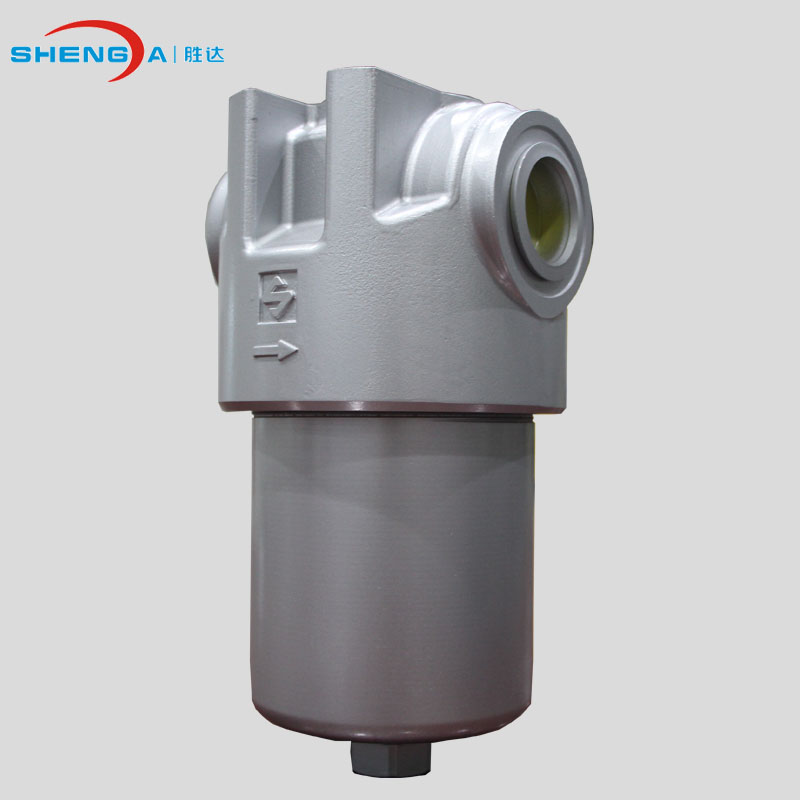

Inline filter low pressure oil filter factory
