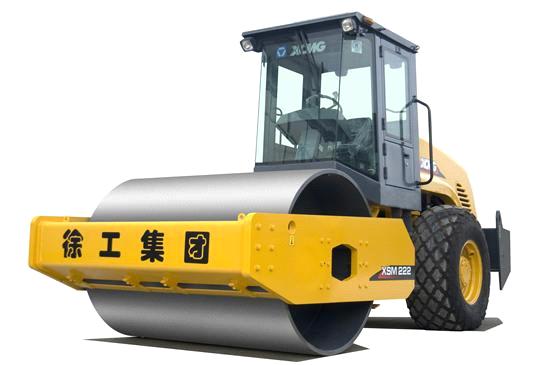

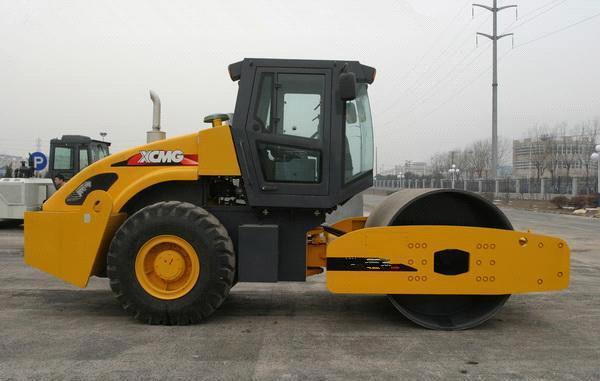

22ton Single Drum Vibratory Road Roller

In Stock

Inquiry Now

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Jiangsu in China
Packaging Details:	nude

Quick Details

Item	Unit	XS222E
Operation weight	kg	22000
Front axle load	kg	15000
Static linear load	kg/mm	704
Vibration frequency	Hz	28/33
Nominal amplitude	mm	1.86/0.93
Excitation force	kN	390/270
Speed1	km/h	0~4
2	km/h	0~5
3	km/h	0~6.4
4	km/h	0~10
Theoretical gradeability	%	50
Min. turning radius (internal)	mm	4370
Engine model		SC8D190.1G2
Rated power	kW	140
Rated speed	rpm	2200
Dimension (Length xWidthx Height)	mm	6222x2390x3077
