Shandong Huaying Auto Sales Co., Ltd.
China Manufacturer with main products: Heavy Truck, Dump Truck, Tractor Truck, Oil Tank Truck, Mixer Truck, Trailer, Tipper Truck, China |

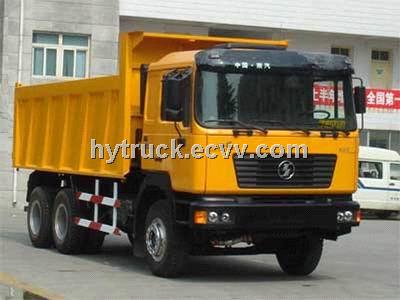

shacman heavy duty F2000 6X4 mining dump truck
| FOB Price: | 38,000.00 - 58,000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | BY SEA |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | N/N |
Quick Details
- Drive Wheel: 6x4
- Capacity (Load): 21 - 30t
- Horsepower: 251 - 350hp
- Condition: New
- Transmission Type: Manual
- Emission Standard: Euro 2
- Fuel Type: Diesel
- Engine Capacity: > 8L
- Gross Vehicle Weight: 12100
- Brand Name: SHACMAN
- Model Number: SX3254DM384
- Dimensions (L x W x H) (mm): 8329X2490X3450
Specifications
Shacman heavy duty tipper truck description:
Our company are professional in trading shacman tipper truck .We can provide you all series shacman trucks.Shacman heavy duty truck is based on a golden industry chain called " 4 golden combinations with Man of German,engines of weichai power,Cummins of USA,Fast transmission and HANDE axle as cores.
1. At present Our Truck with Euro 2/ Euro 3/Euro 4 Emission Standard. Shacman dump truck,tractor truck,tipper truck,oil tank,concerete mixer truck,special truck etc.
2. Engine Model: weichai(270HP-480HP);Drive model:4*2, 6*2,6*4, 8*4, etc.
3. According to different area,road situation and transport material, we will recommend the suitable product( different thickness of container steel material , different height of container) for your esteemed company.
4. The hydraulic lifting system adop of Holland Brand" HYVA " Front hydraulic lifting cylinder, with Best quality and
perfect performance.
Model
dumper SX3251DM384
Drive type
6*4
Weight
Complete kerb mass (kg)
25000
GVW (kg)
12100
GCW(kg)
Dimensions
Outline Dimension
8329X2490X3450
Front/Rear Overhang(mm)
1525/1654
Trunk box chest
5600x2300x1500
Wheel base(mm
3800+1850
Track width(mm)
2035/1860
Performance
Max.speed (km/h)
77
Min.turning circle(m)
15
Min.ground clearance(mm)
314
Approach / Departure angle (°)
20/32
Max.gradeability(%)
34
Engine
Brand
WEI CHAI
Model
WP10.270/WP10.290
Power(kw/HP)
199/270,213/290
Max Torque (N.m )/rpm
Emmission Standards
EuroII
Transmission
Brand
FAST
Model
9JS135
Control type
Manual
Gear Shift
Option
Clutch
Type
Single plate,diaphragm spring
Diameter (mm)
φ430
Action
mechanical type,hydraulic and pneumatic operation
Brakes
Type
Drum
Service brake
With dual-circuit
compressed air brake
Park brake
Power spring brake acting
on rear wheel
Auxiliary brake
WEVB
Option
ABS
Steering
Type
Integral circulating ball
power sreering
Option
ZF8098
Suspension
Front Suspension
Longitudinal leaf spring
Rear Suspension
Inverted leaf spring stabilizator suspension
Axles
Brand
HANDE
Front axle
7.5T STR
Rear axle
13000kg(each other)
Double reduction driving axle with
inter-wheel differential and differential lock.
Ratio
4.42-6.72
Tyres
Type (Standard)
11.00-20
Option
12.00R20/11.00-20/11.00R20/12R22.5
Fueltank
Tank capacity (L)
380
Material
Aluminium
Cab
D'long F2000 Mid-lengthened flat floor
Equipments
2 rear window,mechanical clerestory,4 point air suspension,air suspension driver seat with handle and seatbelts,hydraulic reversal cab,with USB can play radilo with MP3 format, integral bumper, NO sleeper
Option
A/C, Electric window lifter
