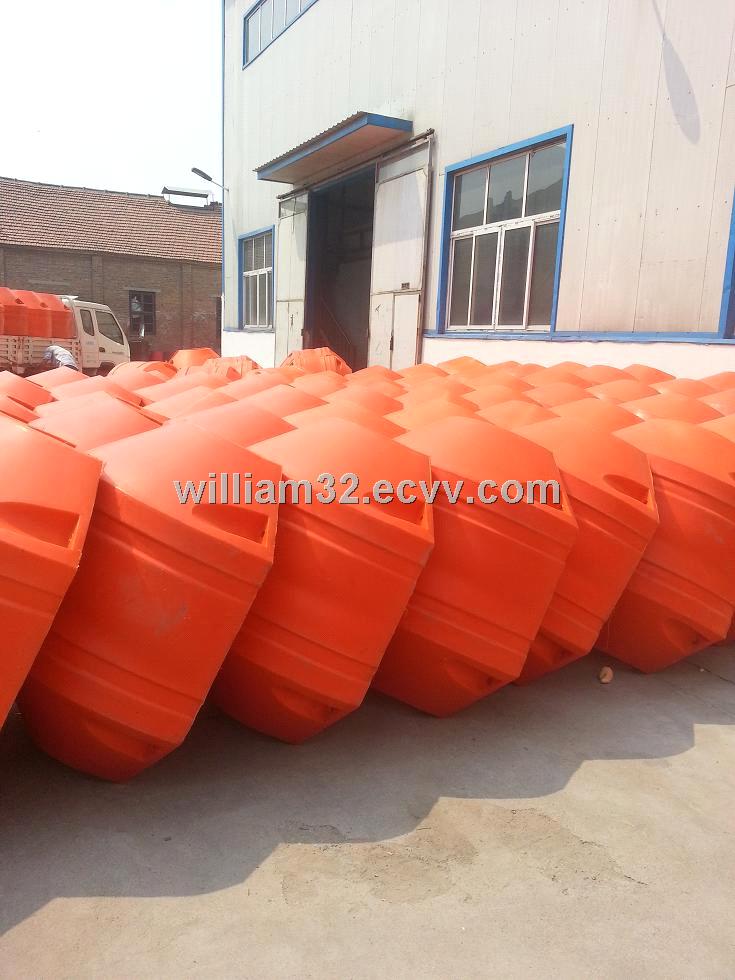

Dredge Float / Dredge Pipe Float / Dredge PE Float / Dredge HDPE Float
| Payment Terms: | L/C, T/T |
|---|
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: lange
- Model Number: MDRE-080DF001
Specifications
Specifications
With lighter weight and longer life time dredge float,
the dredging product would be highly improved.
The dredging pipes are the necessary parts for a Suction Dredger, they can be used to connect the discharge area and the Dredger.
We manufacture complete dredge pipes (or pipelines) to transport the mixture out of the dredger and discharge areas. They are key components in the transport process and dredge cycle and are thus exposed to varied but often high levels of wear. They cover a range of pipe patterns and structures varying from simple straight pieces to complex three and four branched pipe assemblies. All are designed and specified according to the application and wear challenge, and particular needs of an individual dredging vessel.
The main characteristics:
* Low initial cost
* High efficiency
* Ease of replacement
* High wear resistant
* Long life time
Types and sizes are as fllows
| Pipe I.D. | Thickness of pipe | Floater I.D. | Floater O.D. | Floater Length. | Hull Thickness | Net Buoyance |
| mm | mm | mm | mm | mm | mm | kg |
| 200 | 6 | 220 | 500 | 800 | 7 | 200 |
| 285 | 6 | 300 | 700 | 1200 | 7 | 420 |
| 350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
| 400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
| 414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
| 450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
| 500 | 10 | 580 | 1400 | 1550 | 9 | 2219 |
| 600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
| 650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
| 700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
| 750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
| 800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
| 850 | 15 | 880 | 1800 | 2200 | 15 | 5140 |
| 900 | 18 | 940 | 2200 | 2500 | 16 | 8180 |
| Remark: | ||||||
| 1. 2pcs per completer floater | ||||||
| 2. Floaters under the size of 4m(O.D.)X4m(L) are all available | ||||||
