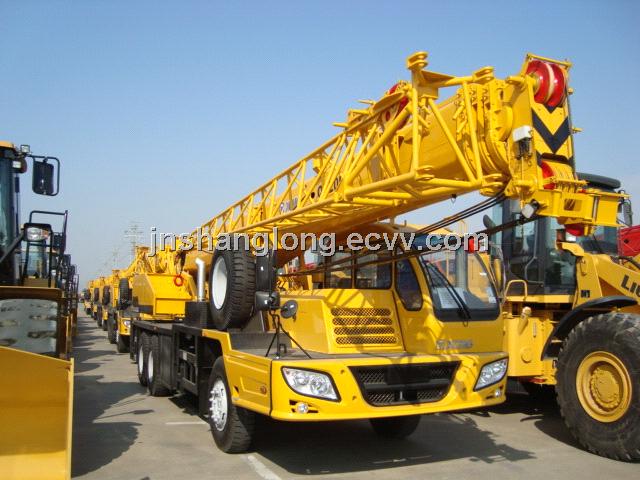

XCMG 20tons QY20B.5 Hydraulic Mobile Truck Crane

FOB Price:	100,000.00 - 110,000.00 USD/Set
Supply Ability:	300 Set/Sets per Month
Shipping:	by ro-ro vessel
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Used Tadano 35T Crane

Price:50000.00-55000.00 USD/Set

Min. Order:1 Set
Truck Crane QY25C

Price:

Min. Order:
Used Tadano 80t Crane Tadano TG800E Ready for W...

Price:47,500.00-52,500.00 USD/Set

Min. Order:1 Set
Tadano Original Crane GT650E

Price:70,000.00-75,000.00 USD/Set

Min. Order:
Used Crane Kobelco 25t

Price:

Min. Order:1 Set
Used Crane Tadano TL-250E, Japan Tadano 25 Ton...

Price:45,000.00-52,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	Southeast Asia, Africa, Mid East
Place of Origin:	Shandong in China
Packaging Details:	nude packing

Quick Details

Condition: New
Rated Loading Capacity: 20000kg
Rated Lifting Moment: 860KN.M
Max. Lifting Load: 20000KG
Max. Lifting Height: 32.76M
Brand Name: XCMG
Model Number: QY20B.5
After-sales Service Provided: No overseas service provided

Specifications

XCMG 20tons QY20B.5 truck crane/crane machine

Jinan Shanglong International Trade Co., Ltd is located in Jinan, shandong Province, China. With more years development, we specializes in exporting SINOTRUCK (HOWO)trucks, semitrailer,special using truck and T-king light truck.

XCMG and ZOOMLION series construction machinery such as truck crane, truck mounted crane,wheel loader, compactor, road rooler, pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.

We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.

Dimension	Unit	QY20B.5
Overall length	mm	12400
Overall width	mm	2500
Overall height	mm	3300
Weight
Total weight in travel	kg	26020
Front axle load	kg	6900
Rear axle load	kg	19120
Power
Engine model		SC8DK260Q3, WD615.327
Engine rated power	kW/(r/min)	192/2200 198/2200
Engine rated torque	N.m/(r/min)	1100/1400 1150/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	20
Min. ground clearance	mm	270
Approach angle	°	21
Departure angle	°	11
Max. grade ability	%	35
Fuel consumption for 100km	L	≈35
Main performance
Max. rated total lifting capacity	t	20
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.385
Max. lifting torque	kN.m	860
Base boom	m	10.06
Fully extended boom	m	32.76
Fully extended boom+jib	m	42.12
Longitudinal outrigger span	m	4.97
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	75
Boom full extension time	s	95
Max. swing speed	r/min	3
Max. speed of main winch (single rope)	m/min	100
Max. speed of aux. winch (single rope)	m/min	100
