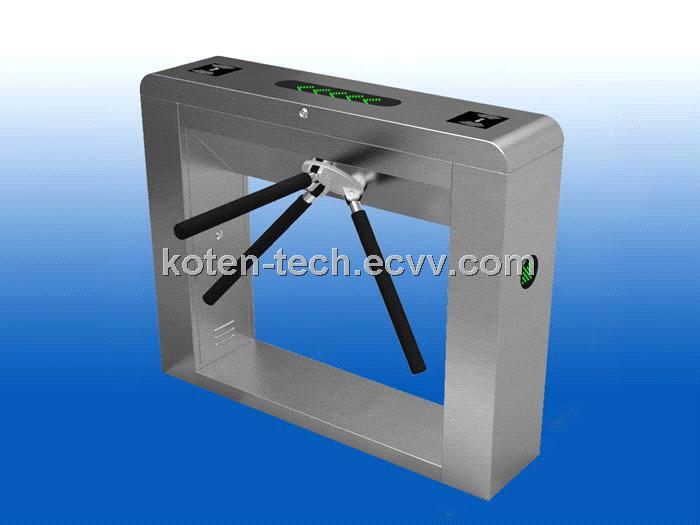

Electronic Automatic Tripode Torniquete

FOB Price:	930.00 - 1,000.00 USD/Unit
Supply Ability:	1,000 Unit/Units per Month
Shipping:	3-12working days, Hongkong or Shenzhen
Payment Terms:	L/C, T/T, Western Union, paypal

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	Packed in wooden cases, inner packed in cartons

Quick Details

Brand Name: Koten
Model Number: KT120
Material of housing: 304 Stainless steel
Material of arm cover: silica
LED indicator: both sides and top have LED indicator
Finish: wire drawing finshed
IP level: 65

Specifications

Specification:

1. Power Supply: AC220V±10V, 50Hz / AC110V±10V, 60Hz

2. Temperature: -15 to 60 degrees

3. Humidity: < 95%, without condensation

4. Passage Width: < =600mm

5. Passing Speed: 30-40persons/min (IC Card)

6. Power Consumption: 100W/24V

7. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current > 10mA

8. Communication Interface: RS485 (Distance: < =1200m)

9. Material: Housing - 304 stainless steel

arm - 202 stainless steel

10. Working Environment: Indoors or outdoors with shed

Functions and features:

1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.

2. Running stable, little noise and no mechanical impact

3. Self-checking-power-on function, if power on, turnstile will auto get to be held.

4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.

5. If power off, arm will fall automatically while power on later, arm should be lift by hand. First press the arm with a little force and then lift it manually.

6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.

7. It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by computer.

8. It will count the persons who have been passed through automatically and will show the number by LED directly. (LED is optional)

9. Passing direction will be shown by LED and passengers will know which direction is allowed to pass.

10. Card reading memory or card reading without memory function can be set in the control panel menu according to your request.

11. If working with software, the total-in-population can be set to satisfy special request.

12. Re-position function. After card reading, if passenger not through within the specific time, system will auto cancel passing right for this time and the limit passing time length can be set.

13. Card Mounting is available.

14. Uncompleted wheel turning system is adopted for locking the turnstile in zero, and unlocking will be more reliable and accurate.

15. Optional:

1) Counter and counter display

2) Access controller or card reader

3) Button by-pass

4) Coin-operated mechanism

5) Biometric control devices
