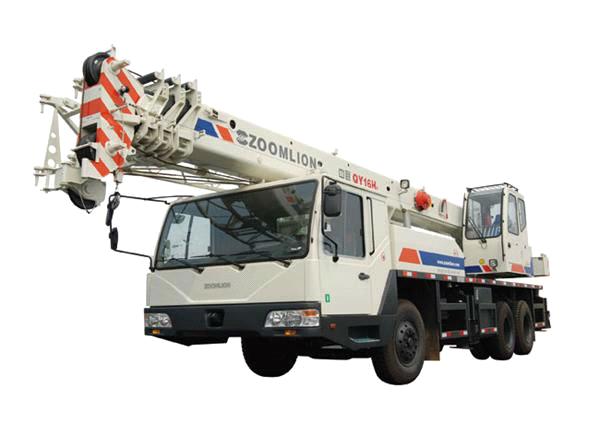

Zoomlion QY16HF431 16t Truck Mounted Mobile Crane
| FOB Price: | /Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | 30-40 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Condition: New
- Rated Loading Capacity: 16000
- Rated Lifting Moment: 710
- Max. Lifting Load: 16000
- Max. Lifting Height: 38.5
- Span: 5.4
- Brand Name: Zoomlion
- Model Number: QY16HF431
Specifications
|
Working performance specification |
|||
|
Max. rated total lifting capacity (kg) |
16000 |
||
|
Max. load moment of basic boom (kN.m) |
710 |
||
|
Max. load moment with max. main boom length (kN.m) |
408 |
||
|
Max. lifting height of main boom (m) |
31.08 |
||
|
Max. lifting height of fly jib (m) |
38.5 |
||
|
Working speed |
|||
|
Max. speed of single rope on main winch (m/min) |
120 |
||
|
Max. speed of single rope onauxiliary winch (m/min) |
90 |
||
|
Derricking time of boom (s) |
55 |
||
|
Telescopic time of boom (s) |
70 |
||
|
Slewing speed (r/min) |
0~2 |
||
|
Traveling specification |
|||
|
Max. traveling speed (km/h) |
70 |
||
|
Max. gradeability (%) |
28 |
||
|
Min. turning circle diameter (m) |
20 |
||
|
Min. ground clearance (mm) |
250 |
||
|
Limits for exhaust pollutants and smoke |
Comply with related standards |
||
|
Oil consumption per hundred kilometers (L) |
38 |
||
|
Mass specification |
|||
|
Deadweight of crane in traveling condition (kg) |
23000 |
||
|
Complete vehicle kerb mass (kg) |
22805 |
||
|
Front axle load (kg) |
6200 |
||
|
Rear axle load (kg) |
16800 |
||
|
Dimension specification |
|||
|
Overall dimensions (L×W×H) (mm) |
12050×2500×3400 |
||
|
Base on outriggers (m) |
4.95 |
||
|
Distance between outriggers (m) |
5.4 |
||
|
Main boom length (m) |
9.8~30.8 |
||
|
Main boom angle (°) |
-2～80 |
||
|
Fly jib length (m) |
7.5 |
||
|
Offset angle of fly jib (°) |
0 , 30 |
||
|
Chassis |
|||
|
Model |
ZLJ5261 |
||
|
Class |
II |
||
|
Engine |
Model |
WP6.240 |
|
|
Rated power (kW/r/min) |
176 /2500 |
||
|
Max. output torque (N.m/r/min) |
800 /1300～1500 |
||
