Zhangjiagang Lianda Machienry
China Manufacturer with main products: Plastic Recycling Line, WPC Extrusion Line, Plastic Palletizer, Plastic Granulator, Plastic Pipe Production Line, Plastic Strap Production... |

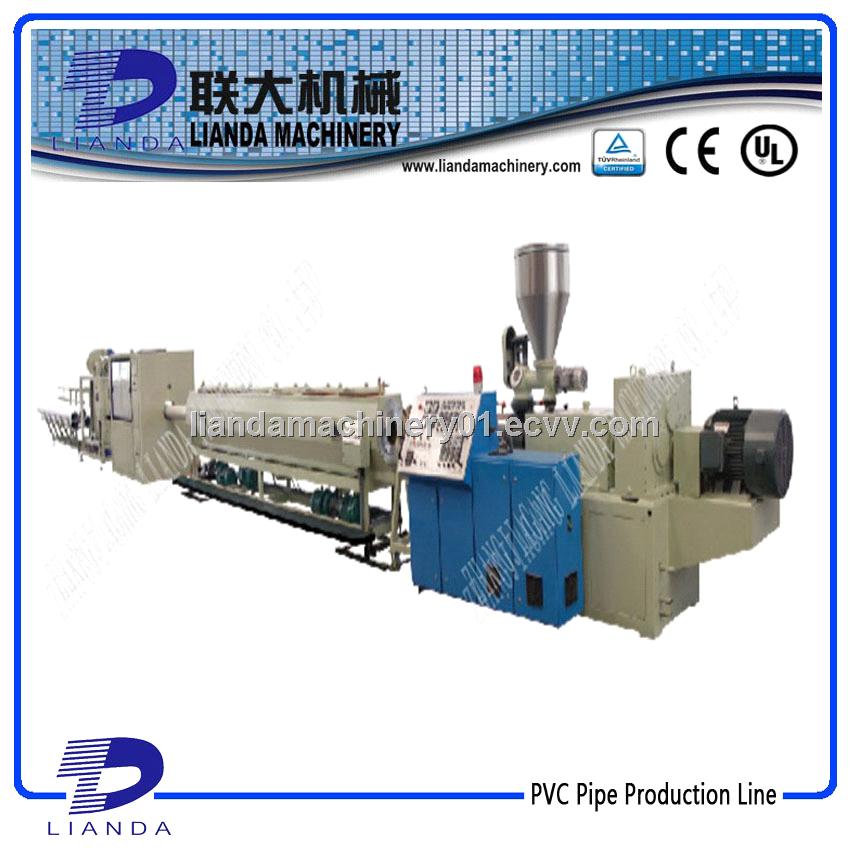

Hot sale pvc pipe production line/machine
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Month |
| Shipping: | 45 days, SHANGHAI Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | standard packing |
Quick Details
- Brand Name: Lianda Machinery
- Model Number: LD
- Plastic Processed: PVC
- Screw Design: Double-screw
- Warrenty: 1 year
- Center Height: 1000mm - 1300mm
- Diameter: 16mm - 800mm
- Line Length: 35m - 68m
Specifications
Hot sale pvc pipe production line/machine
2013 Hot sale pvc pipe production line/machine
1. Characteristic of pvc pipe production line/machine
- Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity, max 1000kg/h.
- Diameter: from 16mm to 630mm.
- Auxiliary machine closely meet customer specifications. Nice out-look, automatic control and stable running performance..
2. Main Technical Parameter
| Parameters | Model | GF160 | GF250 | GF400 | GF630 |
| Extruder | Model | SJSZ65 | SJSZ80 | SJSZ80 | SJSZ92 |
| Output(kg/h) | 100-250 | 100-400 | 100-400 | 200-800 | |
| Pipe range | 50-160mm | 90-250mm | 110-400mm | 315-630mm | |
| Total power | 80 kw | 115 kw | 115 kw | 168 kw | |
| Sizing case | Total power | 9.5 kw | 14 kw | 16.5 kw | 23.5 kw |
| Haul-off | Speed (m/min) | 1-5 | 0.1-3 | 0.1-3.5 | 0.1-2 |
| Haul-off force (N) | 15000 | 25000 | 35000 | 50000 | |
| Total Power | 4 kw | 5 kw | 6 kw | 9 kw | |
| Cutter | Cutter type | Planet cutting | |||
| Total power | 4.6 kw | 4.6 kw | 5.6 kw | 6 kw | |
| Pipe Length(M) | 6 | 6 | 6 | 6 | |
3.System Configuration of pvc pipe production line/machine
| Item | Machine |
| 1 | Auto Loader |
| 2 | Twin Screw Extruder |
| 3 | Mould |
| 4 | Vacuum Calibration Tank |
| 5 | Extender Cooling Tank |
| 6 | Haul-off |
| 7 | Cutter |
| 8 | Stacker |
A&Q
A:what is your advantage in comparison with other companies?
Q:Firstly,our factory is not big one and we could reduce the labor cost and routine management cost,so our machine is with lower cost.
Secondly,we have an intelligent team including engineers and salespersons with the same experience like the ones working in big factories.So,do not worry about our capability. Thirdly,we could guarantee the electrical and mechanical components for one year since the machine could run smoothly in your plant.
key words: pvc pipe production line/machine, pvc pipe production line/machine, pvc pipe production line/machine
