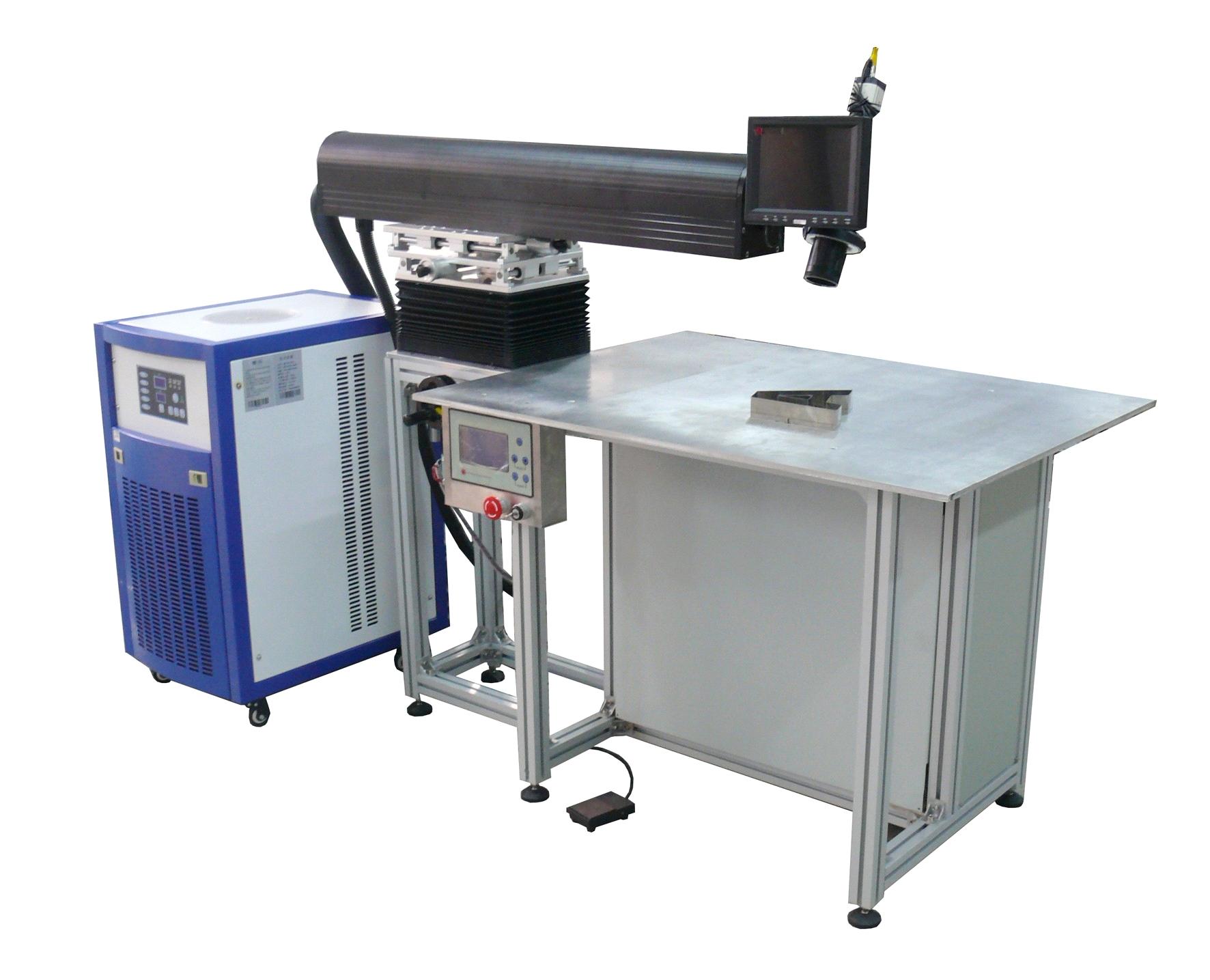

200W Aluminum LED Signs Welding Machine With CE

FOB Price:	5,000.00 - 7,500.00 USD/Set
Supply Ability:	70 Set/Sets per Month
Shipping:	Within 3-5 working days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Fumigation-free wooden case

Quick Details

Brand Name: Domain Laser
Model Number: CY-200HZ
Voltage: 220V
Current: Adjustable
Dimensions: 1160*610*1150mm+1420*870*1100 mm
Weight: 319kg
Usage: Welding various of 3D letters
Certification: CE
After-sales Service Provided: Overseas service center available
Brand: Domain Laser
Color: white&blue
Laser Source: Nd
Laser Wavelength: 1064nm
Single Pulse Energy: 60J
Pulse Width: <15ms
Rated Power: 200W
Power Consumption: 6KW
Power Supply: 220V,50/60Hz
Cooling System: water cooling

Specifications

200W Aluminum LED Signs Welding Machine With CE

Application:

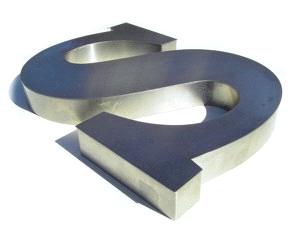

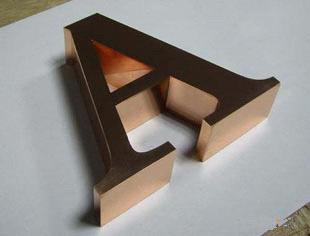

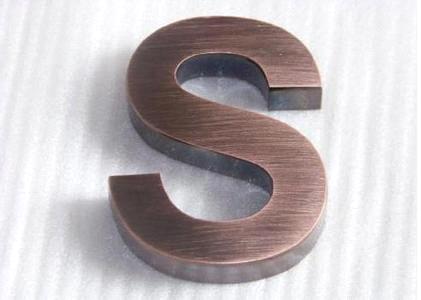

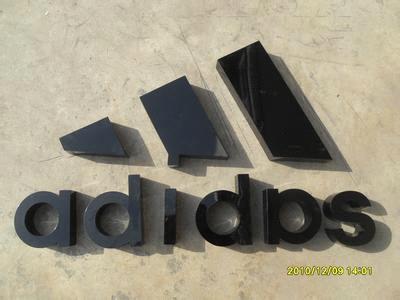

High precision laser welding machine applied for the welding of various metal letters, LED illuminated letters,customized metal signage, and exterior billboards.

Features:

1. Red light fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to deal with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing technology brings higher quality of end products.
10. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding
11. Laser cavity can move left and right easily for more space when welding big letters
12．The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option

Parameters:

Parameter	Description
Model No.	CY-W200HZ
3-axis itinerary	X=700mm Y=150mm Z=200mm
Bench scale	750*1000mm
Bearing of bench	≤200KG
Power supply	220V±10%/50HZ or 60HZ
Laser type	Pulsed Nd:YAG (xenon lamp)
Adjustment range of light spot	0.1～0.3mm
Size of light spot	0.2～3.0mm
Laser wavelength	1064nm
Pulse width	≤15ms
Rated power	200W
Pulse frequency	≤30Hz
Focal length	150 or 200mm
Laser cooling	Water cooling
