Jinan Shanglong International Trade Co., Ltd.
China Manufacturer with main products: Howo Dump Truck, Tractor, Cargo Truck, Truck Crane, All Terrain Crane, Mounted Crane, Wheel Loader, Light-Duty Truck |

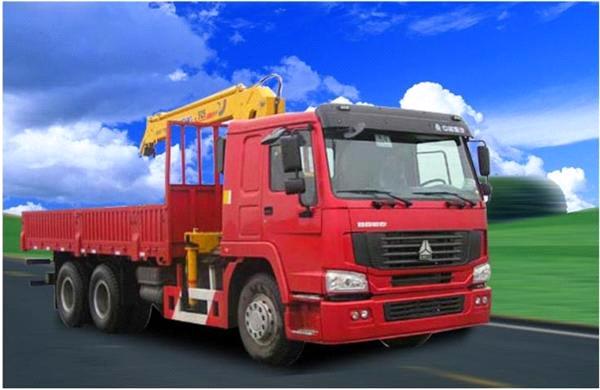

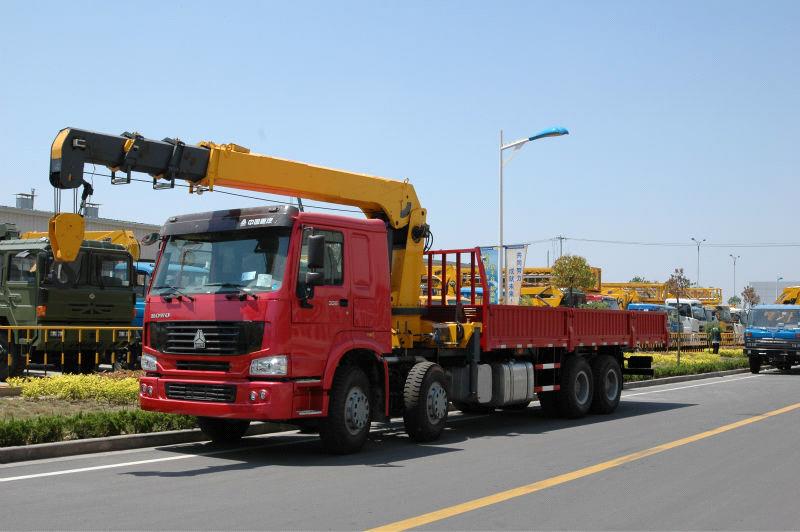

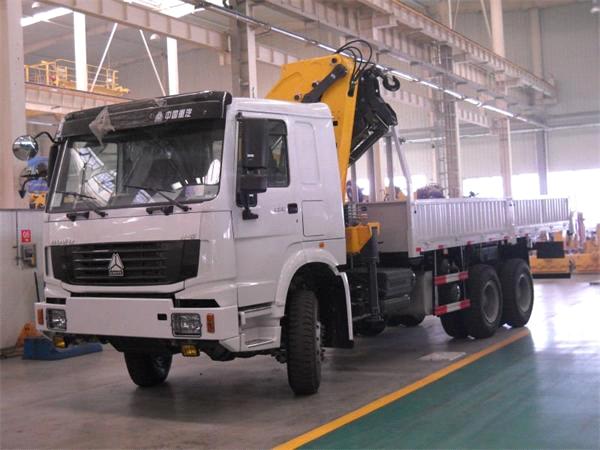

HOWO 6x4 truck with 10/12TON XCMGE Xcellent Crane
| FOB Price: | /Set |
|---|---|
| Supply Ability: | 150 Set/Sets per Month |
| Shipping: | 30-40 DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | NUDE |
Quick Details
- Condition: New
- Rated Loading Capacity: 10000kg
- Rated Lifting Moment: 25
- Max. Lifting Load: 10000kg
- Max. Lifting Height: 2.5m
- Span: 1150mm
- Brand Name: XCMG
- Model Number: SQ10SK3Q/SQ12SK3Q
Specifications
Excellent 10Tons crane on HOWO 6x4 truck truck with crane
Crane Basic parameters
Model
SQ12SK3Q
SQ10SK3Q
Max Lifting Capacity (kg)
12000
10000
Max Lifting Moment (T.M)
30
25
Recommend Power (kw)
30
28
Max Oil Flow of Hydraulic System (L/min)
63
63
Max Pressure of Hydraulic System (MPa)
26
26
Oil Tank Capacity (L)
160
160
Rotation Angle
All Rotation
Crane Weight (kg)
4200
3800
Installation Space (mm)
1300
1150
Chassis
Chassis model
ZZ1251M5841C1
Chassis size (mm)
11579x2490x3070,
Curb weight (kg)
8820,8420
Total weight (kg)
25000
Wheelbase (mm)
5750+1350
Front track (mm)
1995,2047
Rear track (mm)
1820/1820,1850/1850
Front/Rear suspension (mm)
1320/3159
Max speed (Km/h)
90
Approach/departure angle
20.5/10
Tyre
11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20
Cab type
HW76 (single sleeper)
Engine
Engine type
WD615.93E WD615.92E WD615.97E WD615.97C WD615.92C WD615.93C
Engine power (Kw)
213(290Hp) 196(266Hp) 221(300Hp) 221(300Hp) 198(269Hp) 213(290Hp)
Emission standard
EURO 3
Fuel type
Diesel
Discharge (L)
9.726
