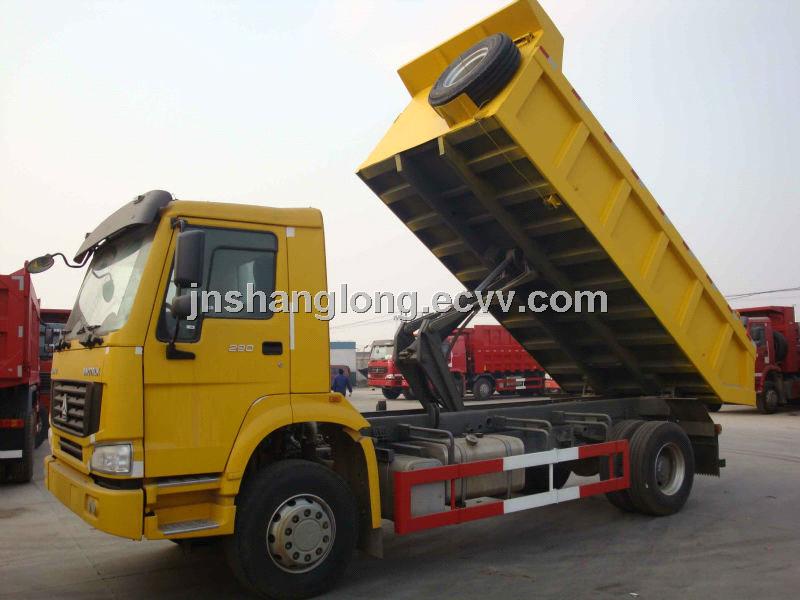

SINOTRUK HOWO 4X2 Tipper / Dumper truck, ZZ3167M4611
| FOB Price: | /Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | 30-40 DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | NUDE |
Quick Details
- Dimensions (L x W x H) (mm): 8127*2500*3500
- Model Number: ZZ3167M4611
- Brand Name: HOWO
- Gross Vehicle Weight: 16000
- Engine Capacity: > 8L
- Fuel Type: Diesel
- Emission Standard: Euro 2
- Transmission Type: Manual
- Condition: New
- Horsepower: 251 - 350hp
- Capacity (Load): 11 - 20t
- Drive Wheel: 4x2
Specifications
SINOTRUK HOWO 4X2 Tipper / Dumper truck, ZZ3167M4611
|
Model |
ZZ3167M4611 |
|
|
Engine |
Model |
WD615.62 |
|
Horsepower |
266 |
|
|
Maximum output Kw/r/min |
196/2200 |
|
|
Maximum torque N.m/r/min |
1100/1100-1600 |
|
|
Type |
Six cylinders inline, supercharge interciiler, supercharge postposition, E-control common rail |
|
|
Displacement |
9.726 L |
|
|
Emission Standard |
Euro 2 |
|
|
Dimensions (mm) |
Overall Dimensions |
8127*2500*3500 |
|
Carriage Dimensions |
5400*2300*1200 (height can be changed) |
|
|
Carriage Cubage (m3) |
19 |
|
|
Carrigae thickness |
floor 8mm/ side 6mm |
|
|
Wheelbase |
4600 |
|
|
Weight (kg) |
Gross weight |
16000 |
|
Curb weight(vehicle/chassis) |
8000 |
|
|
Front Axle loading capacity |
9,000 |
|
|
Rear Axle loading capacity |
16,000 |
|
|
Cab |
HW70,two seats, no sleeper, (air conditioner and cockpit dome is optional,) |
|
|
Transmission |
HW15710, 10 forward and 2 reverse, manual |
|
|
Steering |
ZF8098, hydraulic steering with power assistance, ratio: 22.2-26.2, system pressure 18MPa |
|
|
Clutch |
Φ430 diaphragm-spring clutch, hydraulically operating with air assistance |
|
|
Elextrics |
Voltage : 24V, generator : 2240W, starter: 24V, 7.5kW, battery: 12V/165Ah, 2 pieces |
|
|
Wheels & Tyres |
12.00-20 bias tyre ( 12.00R20 radial tyre is optional) |
|
|
Oil Tanker |
Square type-300L Aluminum alloy fuel tank |
|
