Rexroth GFT160T2, GFT160T3 Travel Drive Gearbox Manufacturer
| Supply Ability: | 1,500 Set(s) per Month |
|---|---|
| Shipping: | Ningbo, China |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | case |
Quick Details
- Output Speed: on request
- Output Torque: 7000-450000
- Brand Name: kemercathy
- Material: steel
- Standard or Nonstandard: custom bilt
- Gearing Arrangement: Planetary
- Model Number: GFT160T2 GFT160T3 GFT160W2 GFT160W3
- Standard or Nonstandard: Standard
- Tooth Profile: Other
- Material: Steel
- Processing: Other
- Interchanged with: Rexroth GFT160 series gearbox
- Torque: 160,000Nm
- Used as: track drive gearbox, winch drive gearbox and wheel drive
Specifications
Planetary gearbox manufacturer from china

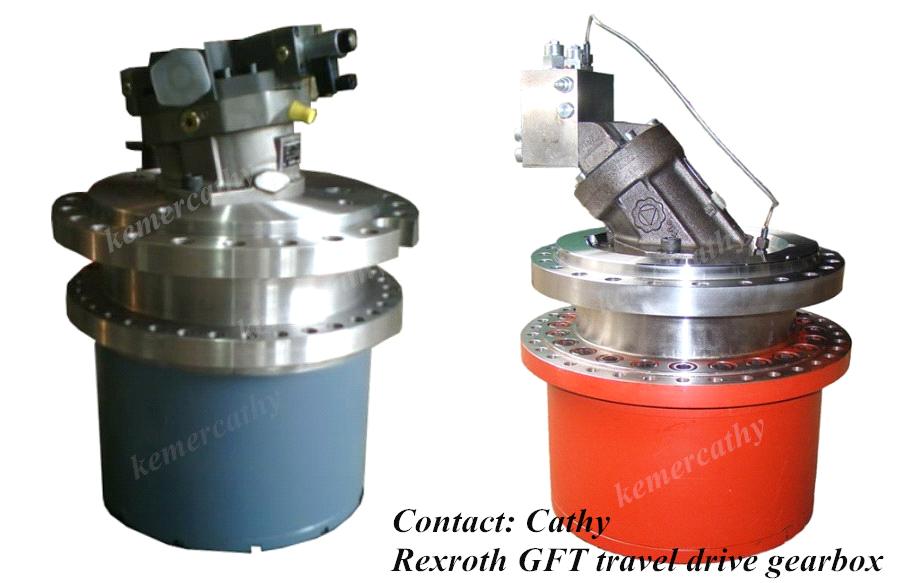

Rexroth GFT160T2, GFT160T3 track drive gearbox manufacturer
Rexroth GFT160W2, GFT160W3 winch drive gearbox manufacturer
Rexroth GFT series track drive gearbox Rexroth GFT series Travel Drive Track Motor Track Drive Final Drive Rexroth GFT series final drive GFT17, GFT24, GFT26, GFT34, GFT36, GFT40, GFT50, GFT60, GFT80, GFT110, GFT160, GFT220, GFT330
Our factory mass produced Rexroth GFT series compact high speed travel drive from GFT 13T2 to GFT 330T3 (13000-330000 N.M)
as a trustworthy manufacturer and supplier, we have a dominating market sharein China, and we also enjoy an increasing market share worldwide. Our products have been exported to:
-Europe: UK, Austria,Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and othercountries in the world.
We can make special ratios for customers exceptfor standard ratios of Rexroth GFT series gearboxes.
Overview
HYDROTRAC GFT is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.
Special Features:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. Multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).
GFT13T2, GFT17T2, GFT17T3, GFT24T3, GFT26T2, GFT36T3, GFT50T3, GFT60T3, GFT80T3, GFT110T3, GFT160T3, GFT220T3, GFT330T3,
| Type / Model | GFT 7 T2 |
GFT 9 T2 | GFT 13 T2 | GFT 17 T2 | GFT 17 T3 | GFT 24 T3 | |
| Output torque(Nm) | 7000 | 9000 | 13000 | 17000 | 17000 | 24000 | |
| Ratio(i) | 17 - 39 | 21- 80 | 23 - 60 | 28 - 54 | 70 - 220 | 63 - 137 | |
| Hydraulic motor | Eaton SAE Motor | A2FE32 | A2FE56 | A2FE63 | A2FE56 | A2FE63 | |
| A6VE55 | A6VE55 | A6VE55 | A6VE55 | ||||
| Weight(kg) | 52 | 77 | 106 | 104 | 121 | 132 | |
| Type / Model | GFT 26 T2 | GFT 36 T3 | GFT 40 T2 | GFT 50 T3 | GFT 60 T3 | GFT 80 T3 | |
| Output torque(Nm) | 26000 | 36000 | 40000 | 50000 | 60000 | 80000 | |
| Ratio(i) | 38 - 62 | 63 - 136 | 36 - 60 | 62 - 176 | 86- 172 | 78 - 186 | |
| Hydraulic motor | A2FE90 | A2FE90 | A2FE125 | A2FE125 | A2FE125 | A2FE180 | |
| A6VE80 | A6VE80 | A6VE160 | A6VE107 | A6VE107 | A6VE160 | ||
| Weight(kg) | 178 | 196 | 247 | 253 | 299 | 466 | |
| Type / Model | GFT 110 T3 | GFT 160 T3 | GFT 220 T3 | GFT 330 T3 | |||
| Output torque(Nm) | 110000 | 160000 | 220000 | 330000 | |||
| Ratio(i) | 80 - 215 | 162 - 251 | 98 - 293 | 169 - 303 | |||
| Hydraulic motor | A2FE180 | A2FE180 | A2FE180 | A2FE355 | |||
| A6VE160 | A6VE160 | A6VE160 | A6VE250 | ||||
| Weight(kg) | 581 | 782 | 1576 | 1438 | |||
