MACYS INDUSTRIAL CO., LIMITED
China Manufacturer with main products: Laser Welding Machine, Laser Cutting Machine, Laser Marking Machine, Laser Engraving Machine, Ad Signs Making Machine, Jewelry Spot Welder,... |
Digital Products Laser Welding Machine With CE
| FOB Price: | 9,000.00 - 12,000.00 USD/Set |
|---|---|
| Supply Ability: | 35 Set/Sets per Week |
| Shipping: | Delivery within 5-10 working days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Fumigation-free wooden case |
Quick Details
- Brand Name: Domain Laser
- Model Number: CY-300W
- Voltage: 380V
- Current: 80A
- Weight: 300KG
- Usage: Used for precision mold repairing
- Certification: CE
- After-sales Service Provided: Overseas service center available
- Brand: Domain Laser
- Color: white&blue
- Laser Source: Nd
- Laser Wavelength: 1064nm
- Single pulse energy: 90J
- Rated Output Power: 300W
- Power Comsumption: 12KW
- Focula Diameter: 0.1-0.3mm
- Power Supply: 380V,50/60hz
- Cooling System: water cooling
Specifications

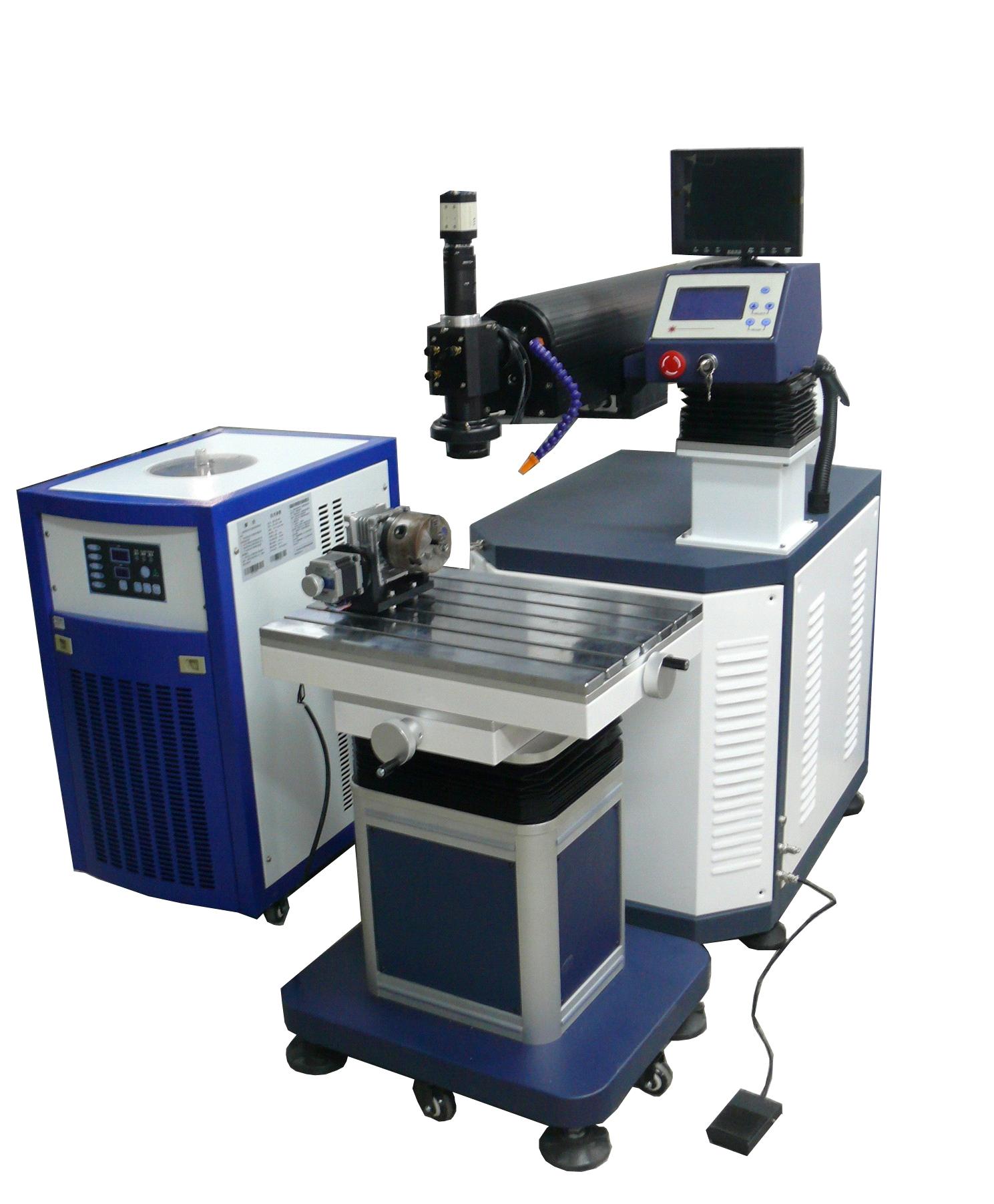

Digital Products Laser Welding Machine With CE
Features:
CY-WY series laser welding machine is specifically designed for mold repairing industries, and mainly used for precision mold repairing. The working principle of this laser machine is to take the advantages of the laser deposit welding and uses the technology of collective and spot welding with high heat of laser. It can effectively treat the welding defects of tiny parts and conduct repair work. This technical advantage fills the gap of the traditional argon-arc welding and cold welding, which cannot reach the precision requirements of fine welded surfaces.
Application:
Laser welding machine not only can be used for repairing for the mold, but also can used for modifying the design size for the mold to shorten the time for product' s R& D. During the operation, the operator can select the output power, frequency and pulse width and other parameters by the touching control panel, the operator can also be moved either forward or backward to achieve high welding efficiency. Different wave shapes can be set according to the welding materials so as to allow the welding parameters to match the welding requirements, generate plane and neat welding seams and points and optimize the welding effects. The equipment especially fits the manufacturing, molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds and rubber molds, and is widely used in mold manufacturing and mold industries for products like cell phone, digital devices, automobiles and motorcycles.
Parameters:
|
Model No.
|
CY-WY300
|
|
Laser working substance
|
Nd3+: YAG ceramic cavity
|
|
Max. single-pulse energy
|
90J
|
|
Max. peak power
|
12kW
|
|
Laser wavelength
|
1064nm
|
|
Focal beam diameter
|
Ф 0.2-3.0mm adjustable
|
|
Rated output power
|
300W
|
|
Min welding pool
|
0.3mm
|
|
Pulsed width
|
0.3-20ms adjustable
|
|
Pulse depth
|
0. 5-1mm
|
|
Pulse frequency
|
≤ 50Hz adjustable
|
|
Electricity
|
380V, 50HZ, 60A/380V, 50HZ, 80A
|
|
Power cooling system
|
internal air cooling
|
|
YAG cavity cooling
|
external water chiller
|
|
Load bearing
|
200kg
|
|
Controlling system
|
PLC programming
|
|
Observing system
|
Microscope/CCD
|
|
Weight
|
250Kg
|
