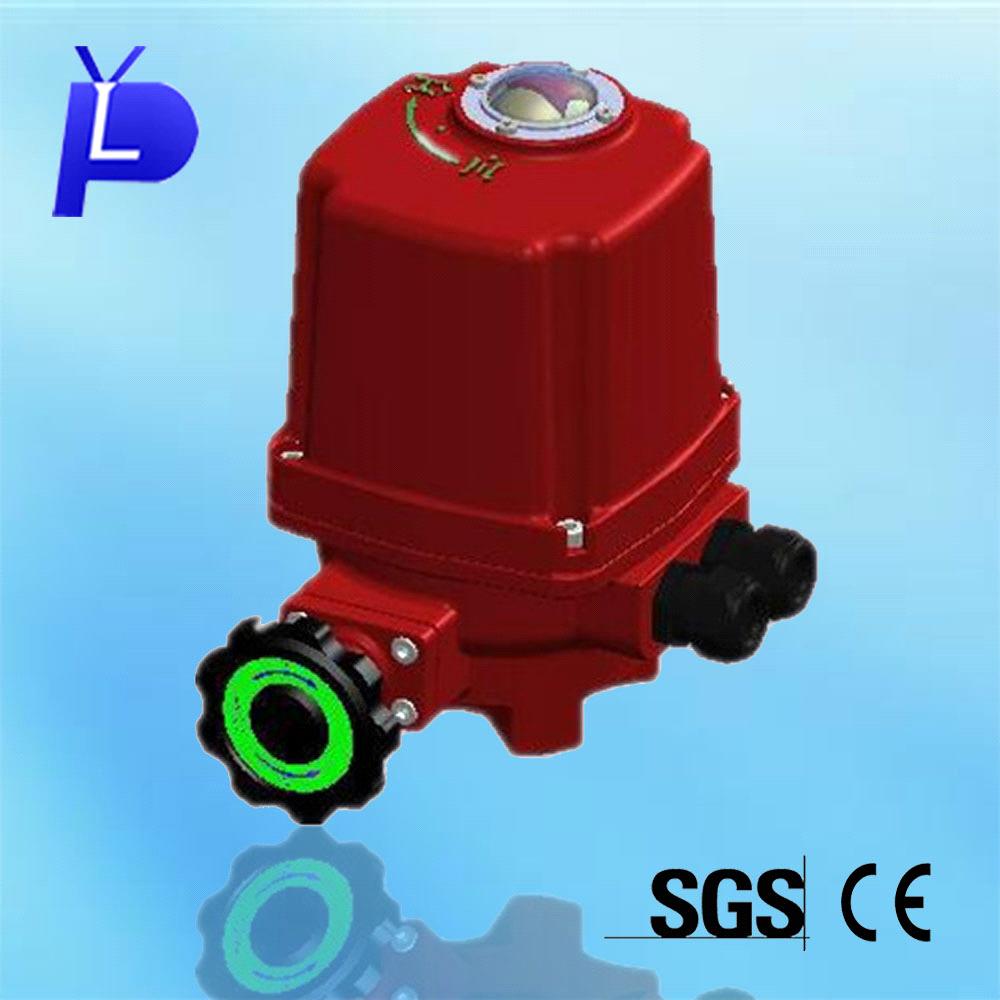

Intelligent Small Valve Actuator
| FOB Price: | 120.00 - 150.00 USD/Set |
|---|---|
| Supply Ability: | 3,000 Set/Sets per Month |
| Shipping: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden case with plastic foam |
Quick Details
- Brand Name: PLY
- Model Number: QHA
Specifications
Intelligent Small Valve Actuator:
The electric actuator series produced by our company are
small in size, environment-friendly energy saving, large in torque,
long in operation life span, suitable for butterfly valves, ball valves
of 90 degree rotation, multiple-turning valves and similar devices.
The products are widely used in pipeline fluid transport and closure
for petrochemical, printing and dyeing, food, electric power,
pharmaceutical, metallurgy, water supply system, municipal engineering
and other industries.
Product Information:
1.Model:QHA
2.Torque: 50Nm
3.ISO5211 Std.: F03/F05/F07
4.Shaft Dimension: 11x11; 14x14
5.Power: 15W
6.Housing:High strength aluminum alloy with environment-friendly surface coating,IP67, accord with the outdoor used testing standard.(optional)
7.Temperature Control:The electric motor is equipped with temperature control device to prevent over-heating and burnt up.
8.Manual Override: Manual override can be used at power outage.
9.Position Indicator: Using high strength transparent plastic,3D indicator creats 360°visual angle.
10.Gear Transmission: Using planetary gear drive and worm wheel drive, with stable transmission performance, excellent self-locking, low noise, long life and other characteristics.
11.Power: DC24V/AC220V;50/60Hz
12.Environment Temp: -20oC-65oC
13.Relative Humidity: <90%(25oC)
14.Working Environment:Without any high corrosion and explosion medium.
15.Working Time:Short-time working system. Rated working time is 30 minutes.
