180W Metal Capacitor Case Welding Machine
| FOB Price: | 68,000.00 - 77,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | 3-5 working days |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Fumigation-free wooden case |
Quick Details
- Brand Name: Domain Laser
- Model Number: CY-WM100
- Voltage: 220V
- Current: 60A
- Dimensions: 1600x800x1500mm
- Usage: highly efficient laser spot welding or seal welding of mobile phone shielding case, mobile phone metal shell, capacitor metal shell
- Certification: CE
- After-sales Service Provided: Overseas service center available
- Brand: Domain Laser
- Color: white&blue
- Laser Source: Nd
- Laser Wavelength: 1064nm
- Size of light spot: 0.2-0.3mm
- Adjusting range of light spot: 0.1-0.3mm
- Resolution: 0.001mm
- Repeating Frequncy: 0.002mm
- Cooling Method: water cooling
Specifications
180W Metal Capacitor Case Welding Machine
Description :
This laser welder uses galvanometer scanning method, features high welding speed, high precision and good light beam mode, and is suitable for precision laser spot welding of various parts.
Feature:
Feature:
This laser welder uses galvanometer scanning method, features high welding speed, high precision and good light beam mode, and is suitable for precision laser spot welding of various parts. During single spot welding, the working efficiency is 4-10 times higher than common laser spot welding because the idle stroke positioning time is reduced significantly. The scanning laser welder consists of YAG solid laser, laser power supply, optical scanning system, 3D adjustable work bench, industrial PC system, cooling system, laser indication system and operating cabinet.
Parameters:
|
Model
|
CY-WM180
|
|
Laser type
|
Nd: YAG
|
|
Laser wavelength
|
1064nm
|
|
Maximum laser power
|
180W
|
|
Pulse width
|
≤ 20ms
|
|
Pulse frequency
|
≤ 50Hz
|
|
Spot welding speed
|
≤ 8spots/s
|
|
Size of light spot
|
0.2-3.0mm
|
|
Adjusting range of light spot
|
0.1-3.0mm
|
|
Maximum positioning speed
|
≤ 7000mm/s
|
|
Resolution
|
0.001 mm
|
|
Repeating precision
|
0.002mm
|
|
Cooling system
|
Water cooling
|
|
Master unit dimensions
|
1600x800x1500mm
|
Application:

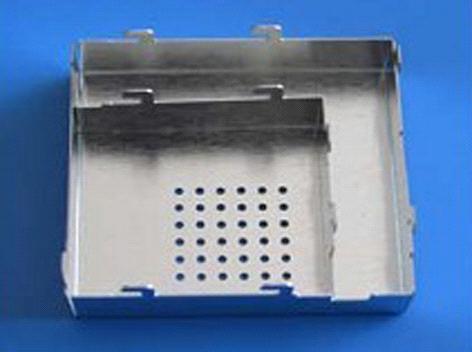

This welder is mainly used in highly efficient laser spot welding or seal welding of mobile phone shielding case, mobile phone metal shell, capacitor metal shell, metal shielding grid in computer, shaver blade, electronic connector and other electronic products.
