T8 led tube light 100-110lm/w CE/SAA

FOB Price:	8.90 - 18.80 USD/Carton
Supply Ability:	6,000 Piece/Pieces per Day
Shipping:	by express, by air, by sea
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	25pcs/CTN

Quick Details

LED Light Source: SMD2835
Warranty(Years): 3
Input Voltage(V): AC100-240V
Lamp Power(W): 10w,14w,18w,20w,22w,24w
Lamp Luminous Flux(lm): 100-110lm/w
Lamp Luminous Efficiency(lm/w): 100-110lm/w
CRI (Ra>): 75 or 80
Color Temperature(CCT): 2700-6500K
Working Temperature(℃): -30 - +50
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP44
Certification: CE,EMC,LVD,PSE,ROHS,SAA
Model Number: T8

Specifications

T8 LED Tube Lights, 100-110lm/w, one/both side power

◆Super stabilized: adopt built-in isolated power supply solution, use 6063-aluminum for the tube body as heat sink, present stable quality performance.
◆Super bright: adopt the brightest SMD2835 LED for currently led technology, 11-12lm/led, zero light decay after 1000 hours testing.
◆Use milky, stripe or transparent PC materials for the Tube cover, greatly reduce the glare effect.
◆Nice appearance:T8pin as unibody design
◆Energy Saving: constant-current driving, super low power consumption, the power efficiency for light nearly close to 100%.
◆Environmental friendly: No UV, NO infrared, also no heating & mercury release risks.
◆Long lifespan: >50000hrs, 10 times than the traditional fluorescent tube.
◆Super protection for power driver: protection for short-circuit, open circuit and overcurrent.

Features

1. One or both sided power input, high PF, low THD

2. Compatible with magnetic ballast, no rewiring, replace directly

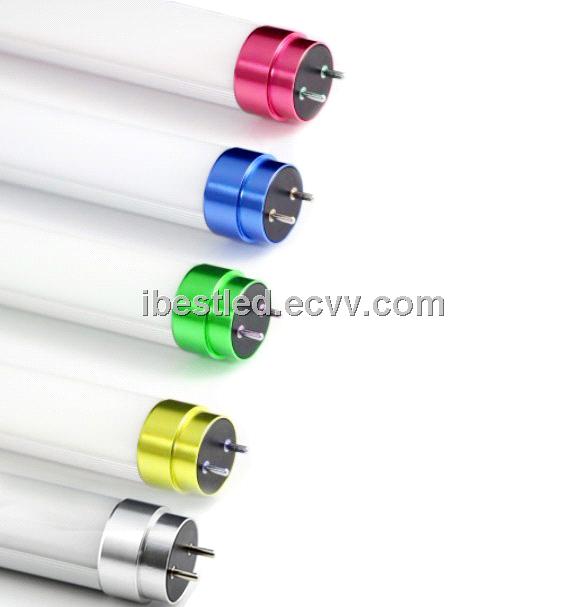

3. Colored metal end cap, G13 base, silver/red/blue/green/yellow colors available

4. Length: 2/3/4/5 ft, 10/14/18/20/22/24W, 100-110lm/w

5. CE RoHS PSE FCC SAA listed

Physical parameter

No.	P/N	Dimension			LED/Qty.	Material
		A	B	Dia.
1	IB-T8-60-72	588mm	603mm	26mm	SMD2835/72	Aluminum alloy+PC
2	IB-T8-90-120	894mm	909mm	26mm	SMD2835/120	Aluminum alloy+PC
3	IB-T8-120-144	1198mm	1213mm	26mm	SMD2835/144	Aluminum alloy+PC
4	IB-T8-120-156	1198mm	1213mm	26mm	SMD2835/156	Aluminum alloy+PC
5	IB-T8-150-204	1498mm	1513mm	26mm	SMD2835/204	Aluminum alloy+PC

Electrical parameter

No.	P/N	Power	Input Voltage	Current distortion	THD	PF	Power efficacy

1	IB-T8-60-72	10w	AC100-240v	±3%	≤10%	≥95%	≥90%
2	IB-T8-90-120	14w	AC100-240v	±3%	≤10%	≥95%	≥90%
3	IB-T8-120-144	18w	AC100-240v	±3%	≤10%	≥95%	≥90%
4	IB-T8-120-156	20w	AC100-240v	±3%	≤10%	≥95%	≥90%
5	IB-T8-150-204	24w	AC100-240v	±3%	≤10%	≥95%	≥90%

Optical parameter

No.	P/N	CCT	Lumen[lm]@cool white			Luxclear
			clear	striped	Frosted	H=1m	H=3m
1	IB-T8-60-72	2800k-6500k	1120lm	1085lm	1026lm	174lux	60lux
2	IB-T8-90-120	2800k-6500k	1540lm	1452lm	1364lm	260lux	91lux
3	IB-T8-120-144	2800k-6500k	1873lm	1820lm	1765lm	304lux	102lux
4	IB-T8-120-156	2800k-6500k	2135lm	2079lm	1946lm	360lux	135lux
5	IB-T8-150-204	2800k-6500k	2439lm	2401lm	2377lm	453lux	161lux
