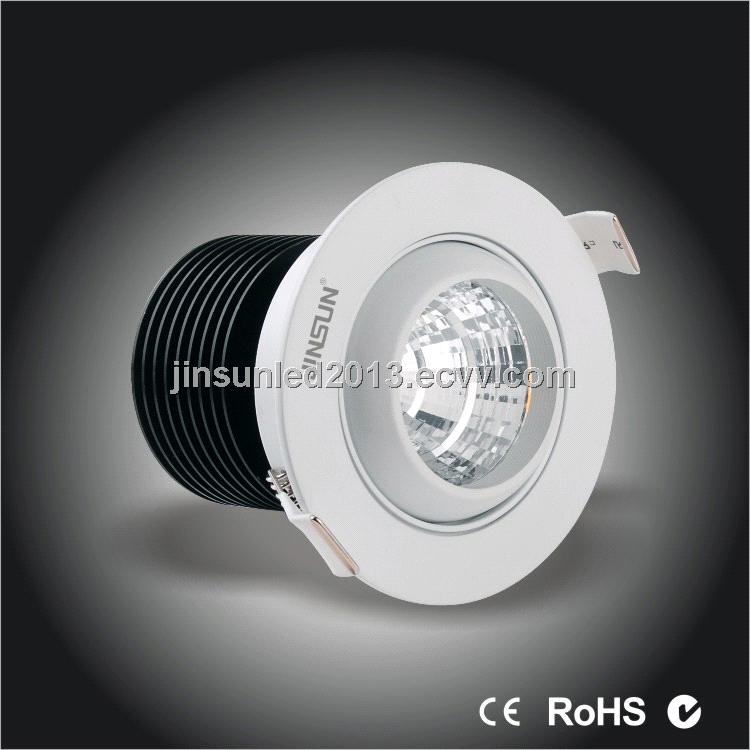

2014 new design 7W 10W 15W LED eyeball downlight,COB downlight,recessed lights

FOB Price:	10.00 - 20.00 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Month
Shipping:	10~20 days depends on the quantiy by sea or by express
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Related products from verified members

LED Downlight Anti Glare INTERGRATED reflector ...

Price:

Min. Order:100 Pieces
Aluminum Die Casting Downlight Parts

Price:1.00-5.00 USD/Piece

Min. Order:500 Pieces
Down Lights

Price:

Min. Order:
Fire Hood for Downlight

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export packing

Quick Details

LED Light Source: Citizen CLL020 1203A5
Install Style: Downlights
Input Voltage(V): 100-240
Lamp Power(W): 10
Lamp Luminous Flux(lm): 700
Lamp Luminous Efficiency(lm/w): 70
CRI (Ra>): 80
Color Temperature(CCT): 3000K/4000K/5000K
Working Temperature(℃): -25 - 65
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: IP40
Certification: CCC,CE,EMC,LVD,ROHS,SAA
Brand Name: Jinsun
Model Number: JS-D5115D-CT 10W
Size: dia90*H67mm
Cut-out: dia80mm
Beam angle: 20/40/60 degree
PF: >0.9
CRI: >80Ra

Specifications

2013 Hot sell 7W 10W 15W LED downlight, COB downlight,recessed lights

Parameters:

Model:	JS-D5115D-CT
Power:	7W
Dimension:	Φ90*H67mm
Cut size:	Φ80mm
Housing material:	High quality 6063 aluminium
Lighting source:	Citizen
Warranty:	3 years
Input voltage;	AC110-240V
Color temeprature	3000K/4000K/6000K
Illumination flux:	490Lm
Color Rendering Index:	≥ 80
Power factor:	≥0.90
Protection level:	IP20
Heat sink:	Patented heat sink. Patent Number: ZL 2010 2 0180034.0

Remark:

1. Citizen chips imported from Japan :100LM-110LM/W Ra:>80

2. Model number letter N means non-adjustable; A means 180 degree-adjustable; D means 360 degree-adjustable.

3. The above products' IP are all IP40, can make IP54, price need further contact

Product Features:

1. Exquisite craft and appearance, simple structure and easy installation, safe and solid lighting fixture;

2. Precise optical design with unique process makes light more uniform and its efficiency reach 85%;

3. Particular structure heat sink which made of grade 6063 aluminum, imported COB lighting source , enable average lifespan of the lamp reach 50000 hours;

4. Superior Aluminum housing with oxidized or painting finished;

5. Lighting fixture is available to swivel in 30 degrees;

6. Healthy and eco-friendly lighting, No IR or UR hazardous.

7. 3 years warranty

Light Structure:

1.Imported Citizen COB used CLL030-1205/1206, Nichia chip and Polycrystalline structure, has the features of a.High luminous efficiency b.Fast heat dissipation c. Low light decay d. Long Life span e.Uniform Emitting

2.Unlike the sun-shape heat sink device, cannot fully dissipate and conduct the heat from the chip, affecting the whole light, light decay, life span, etc,

3.Our device design use chimney-shape, and with high quality Al6063, easily conduct and dissipate the heat, keep the light better functioning.

4. High quality Al6063 heat sink produce process.

Produce Process:

1. We meticulously consedered the design from the aesthetic appearance, thermal structure, eclectrical specifications to the product installtion convenience and safety;

2. Repeat experiments tested, strive to best performance of each product and low energy consumption to the extreme.

Trade terms:

1. Payment: T/T, Western Union are available

2. Lead time: 10 working days for 100~500pcs, 15 working days for 500~2000pcs

3. Samples can be available within 6-8 working days

4. Shipping freight is quoted under your requests

5. Shipping port: Zhongshan/Shenzhen, China mainland

6. Discounts are offered based on order quantities

Service:

1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are acceptable, OEM brand is available.

4. Protection of your sales area, ideas of design and all your private information.

5. Workers can be dispatched to our factory, free train and free charge.

If you are interested in our products, please send us enquiry to get the latest price.
