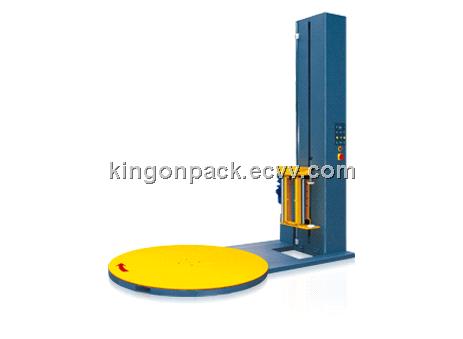

DT1650F pallet wrapping machine

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wooden case

Quick Details

Condition: New
Application: Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type: Cartons,Case
Packaging Material: Plastic,Metal,Wood
Automatic Grade: Semi-Automatic
Driven Type: Electric
Voltage: 220V/50HZ
Power: 2.2KW
Brand Name: Kingon
Model Number: DT1650F
Dimension(L*W*H): 2700x1700x3000
Weight: 600kg
Certification: ISO CE
After-sales Service Provided: Overseas third-party support available

Model	DT1650F
Wrap size(L×W)	(500-1200)mm×(500-1200)mm
Wrap height(max)	L type: 1800mm H type: 2400mm Y type: 2800mm
Wrap efficiency	20-40 Pallets/Hour
Turntable speed	0-12rpm Adjustable turntable speed
Turntable diameter	1650mm
Turntable height	78mm
Turntable weight capacity (max)	2000kg
Film carriage	Power pre-stretch system up to 350％ with adjustable speed
Lift system	Double chain structure, lift speed adjustable
Control system	PLC control, wrap layers adjustable, Turntable automatically reposition, photo-eyes auto-height sensing
Total weight(max)	500kg
Machine size	2745mm×1650mm×(2270-2870)mm
Power/voltage	Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V
Top plate(optional)	Motor-Driven
Ramp(optional)	Custom made
