ShenZhen J-wide Electronics Equipment Co., Ltd.
China Manufacturer with main products: Solder Paste Printer, Solder Paste Mixer, PCB v Cut Separator, Smt PCB Conveyor, PCB Loader, SMD Chip Counter, Ultrasonic Cleaner, Wave... |

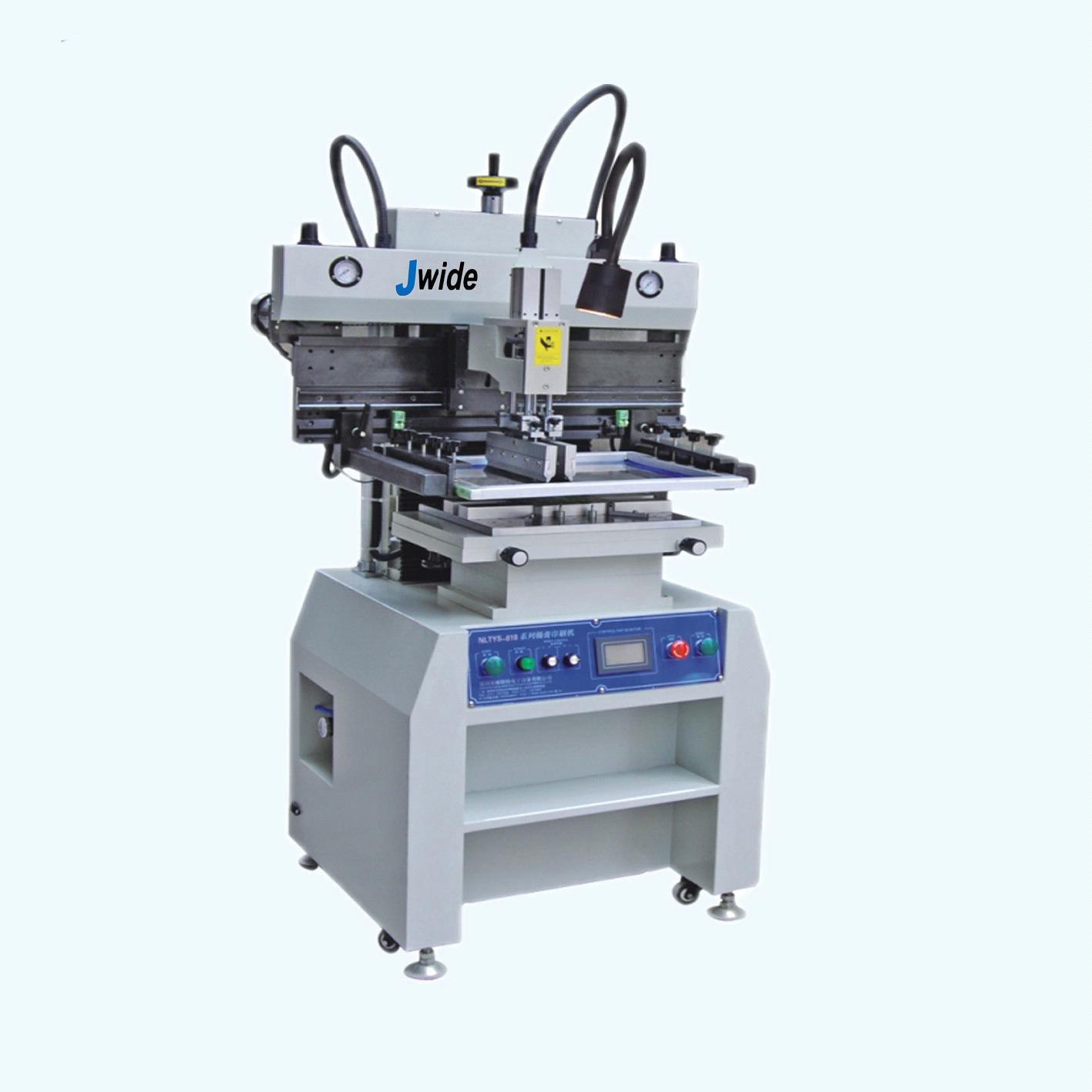

JW-818 Solder paste printer
| FOB Price: | 4,000.00 USD/Set |
|---|---|
| Supply Ability: | 120 Set/Sets per Month |
| Shipping: | 7 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden case |
Quick Details
- Brand Name: Jwide
- Model Number: JW-818
- PCB Size: 250*400mm
- Type: Semi automatic
- Printing precision: 0.5mm
- Printing speed: adjustable
Specifications
Technical Specification:
| Brand | Jwide |
| Model | JW-818 printer |
| Outer Dimension | 850*670*1550mm |
| Platform size | 320*500mm |
| PCB Size | 250*400mm |
| Template size | 550*680mm |
| Printing speed | 0~8000mm/min |
| PCB Thickness | 0~100mm |
| PCB Tuning range | Front/Side +10mm |
| Power Supply | 1PAC220V 50/60HZ |
| Platform height | 850±20mm |
| Repeatability | ±0.01mm |
| Positioning mode | Outsie/Reference hole |
| Weight | Approx.270Kg |
Product Features:
1.Adopt Korean made high precision roller rail and various frequency,adjustable speed motor drive scrapper to ensure
printing precision.
2.Scraper can slide back and forth to choose the best printing location.
3.Scraper can rotate 45degrees upward to fix,convenient for cleaning and change.
4.Panasonic PLC touc.h screen controller to make operation easier.
5.Fixableng printing cycles,available multi printing mode ,easy parameter setting.
6.Three working mode:automatic(machine maintainence),semi-automatic(normal operation)and manual(debugging).
7.Magnetic honeycomb fashion platform to make single/double board allocation easy and flexible.
8.Adjustable scrapper's angle,pressure and stroke;suitable for steel scrapper and rubber scraper
