500W Fiber Laser Cutting Machine For Tool Processing

FOB Price:	95,000.00 - 100,000.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	3-5 working days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Fumigation-free wooden case

Quick Details

Condition: New
Brand Name: Domain Laser
Model Number: CY-F1530C
Voltage: 380V
Rated Power: 500W
Weight: 3600kg
Certification: CE
Warranty: one year
After-sales Service Provided: Overseas service center available
Brand: Domain Laser
Color: grey&red
Output Power: 500W
Laser Type: IPG Fiber Laser
Max. Processing Area: 3000mmX1500mm
Max. Cutting Speed: 30m/min
Max. No-load Speed: 60m/min
Max. Cutting Thickness: 6mm
Cutting Seam Width: 0.10(depend on the material)
Machine Weight: 3600kg

Specifications

500W Fiber Laser Cutting Machine For Tool Processing

Features:

1. High Efficiency: The cutting speed is 2 times of CO2 laser cutting machine and 10 times of YAG cutting machine under the same power.

2. Low-energy Consuming: Low power consumption which is only one-sixth of the YAG laser cutting machine.

3. Easier Maintenance: Fiber transmission, just need to change the protective lens, and has no need to adjust the light path.

4. Lower Running Cost: No laser working gas and can start cutting just by blowing air.

5. Reliable Performance: Using Rayco laser device with the stability performance, and which has a 100 thousand working life.

Technical Parameters:

Model	CY-F1530C
Output Power	500W
Laser Type	IPG Fiber Laser
Max. Processing Area	3000mmX1500mm
X axis Stroke	3050mm
Y axis Stroke	1525mm
Z axis Stroke	120mm
Max. Cutting Speed	30m/min
Max. No-load Speed	60m/min
Max. No-load Accelerated Speed	0.5G
Max. Cutting Thickness	6mm
Cutting Seam Width	0.10(depend on the material)
X/Y Axis Positioning Accuracy	0.03mm/m
X/Y Axis Repeated Positioning Accuracy	+0.03mm
Machine Weight	3600kg
Max. Load of worktable	500kg
Phase	3
Rated Voltage	380V
Frequency	50HZ
Total Power Protection Grade	IP54

Cutting Parameters:

Material	Thickness(mm)	Speed (m/min)	Cover Gas
Stainless Steel	0.3	25	Oxygen
	0.5	15	Oxygen
	0.7	12
	0.9	10
	1.0	9
	1.2	7
	2	5
	3	2
	4	1.2
	6	0.2
	1	8-9	Nitrogen
	2	3-3.5
	3	0.3-0.5
Carbon Steel	1	8-9	Oxygen
	2	2.5-3.5	Oxygen
	3	2-2.5
	4	1-1.5
	5	0.7-1
	6	0.7-0.9
Aluminum Alloy	1	2	Nitrogen
Aluminum Alloy	2	0.4-0.6	Nitrogen

Applicable industry:

Metal cutting, electrical switch manufacturing, elevator manufacturing, household appliance manufacturing, kitchen ware manufacturing, tool processing and other mechanical manufacturing and processing industry.

Applicable material:

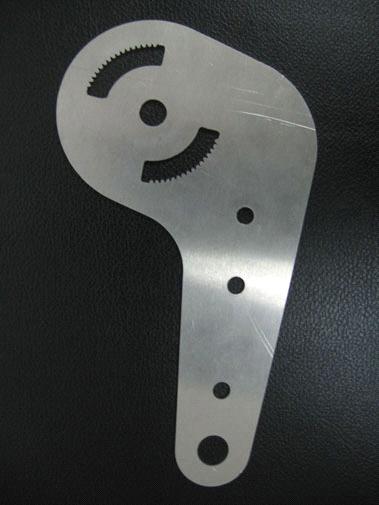

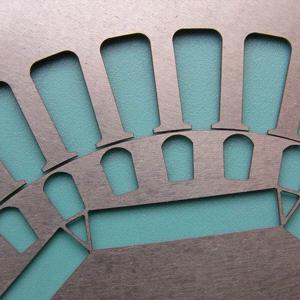

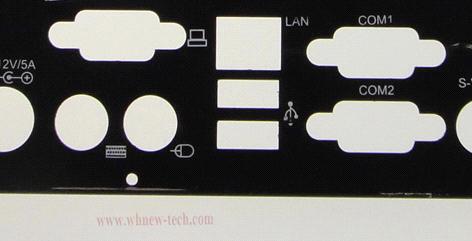

Professional for cutting various thin metal sheets, 0.5-6mm carbon steel plates with high quality and aluminum alloy plate, galvanized plate, electrolytic plate, silicon steel, titanium alloy,sheet zinc with aluminum plated, thin brass sheet and other variety of metal sheets.
