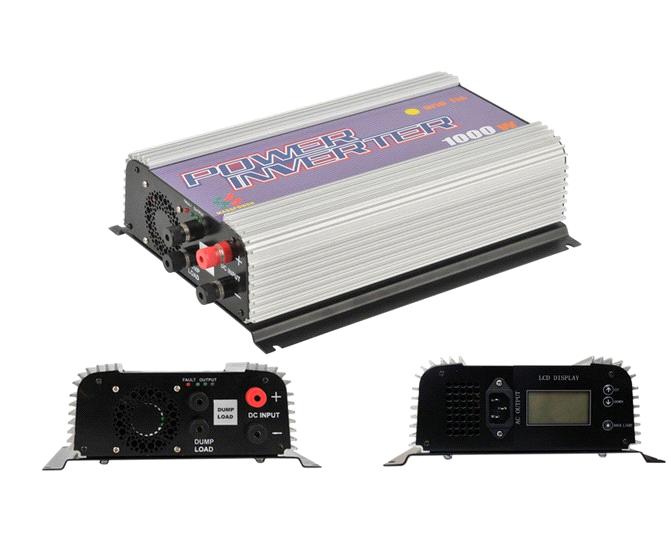

1000W Power Inverter, Wind Power, Grid Tie Inverter (SUN-1000G-WDL-LCD)
| FOB Price: | 195.00 - 205.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | cartons |
Quick Details
- Brand Name: MASSPOWER
- Model Number: SUN-1000G-WDL-LCD
- Output Power: 1 - 200KW
- Output Type: Single
- Size: 405mm*275mm*123mm
- Weight: 5.0kg
- Input Voltage: 22V ~ 60V
- Output Voltage: 90V ~ 130V/190V ~ 260V
- Type: DC/AC Inverters
- Output Frequency: 46Hz ~ 65Hz
Specifications
For AC Output Wind Turbine
Build In Dump Load Controller
Build In High Wind Protection
Build In LCD Display
Build In Electric Brake System
The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.
This model grid-tie has designed for wind turbines that put out 3 phases AC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can't keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.
LCD display Function:
1. Electric parameters measurement function (voltage, current and active power, electric energy).
2. Running time function (record load cumulative working hours).
3. Backlight function.
4. Power down data save function (save the number of kWh, operation time).
5. Large screen LCD display (display voltage, current, power, active power, cumulative running time)
Key Function:
UP:
Short press will display power, electricity, current and voltage in anti-sequence.
DOWN:
Short press will display power, electricity, current and voltage in sequence.
BACK LIGHT:
Short press will open or close backlight.
| Model | SUN-1000G_WDL-LCD | |
| Normal AC Output Power | 900W | |
| Maximum AC Output Power | 1000W | |
| AC Output Voltage Range | 230V Model | 190V ~ 260V |
| 115V Model | 90V ~ 130V | |
| AC Output Frequency Range | 46Hz ~ 65Hz | |
| Total Harmonic Distortion(THD) | <5% | |
| Power Factor | 0.99 | |
| DC Input Voltage Range | 22V ~ 60V | |
| Peak Inverter Efficiency | 92% | |
| Standby Power consumption | <1W | |
| Output Current Waveform | Pure Sine-wave | |
| MPPT Function | Yes | |
| Over Current Protection | Yes | |
| Over Temperature Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Island Protection | Yes | |
| Stackable | Yes | |
