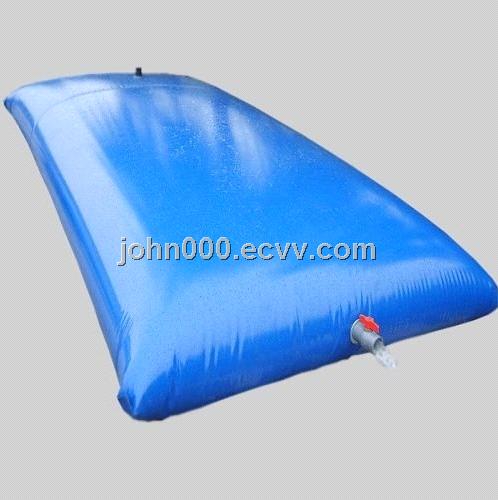

potable water tank's fabric

FOB Price:	100.00 USD/Square Meter
Supply Ability:	300,000 Square Meter/Square Meters per Month
Shipping:	Shanghai
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Pneumatic Bottom Tank Valve,feed valves

Price:500.00-50,000.00 USD/Set

Min. Order:1 Set
Stainless Steel Storage Tank (ZG)

Price:

Min. Order:
Storage Tank

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	as per clients' requirement

Quick Details

Brand Name: yonglitex
Model Number: UE 4010PN L V-501.000

Specifications

Product Datasheet

UE 4010PN L V-501.000

PROPERTIES	METRIC	US Standard	TEST METHOD
Yarn	Polyester 1100Dtex	Polyester 1000D
Fabric	270 g/m²	7.9 oz/yd²	ASTM D 751
Coating type	TPU	TPU
Surface Pattern	Matt	Matt
Total Weight	1000 g/m²	29.5 oz/yd²	ASTM D 751
Total Thickness	0.95mm	0.037 inch	ASTM D 751
Tensile Strength, strip	4000/3500 N/5cm	450/337 lbs/inch	ASTM D 751
Tear Strength, tongue	400/380 N	90/85lbs	ASTM D 751
Adhesion, HF welding	320 N/5cm	36 lbs/inch	ASTM D 751
Air Porosity	Pass(10min at 7 psi)	Pass (10min at 7 psi)	BS 4F 100 clause 32.1
Cold Crack / Bend	-30^oC ~ 70^oC	-22^oF ~ 158^oF	DIN 53361
Application	Potable Water Tanks

Version: Feb. 2013

— Max. width: 550mm

— Color: blue/natural

— Welding Method: HF welding, Hot-air welding

— The inside TPU coating complies with NSF 61 & AS/NZS 4020

Disclaimer:

Technical data shown above is arithmetical average and defined under standard climatic conditions: 23℃, 50% relative humidity (ISO554) ,allowing ±5% tolerance. We take the responsibility of technical data of this page and except of this we don't undertake any other legal duty.
