IRMT Co., Ltd.
China Manufacturer with main products: IR Multi Touch Frame, Multi Touch Solution |

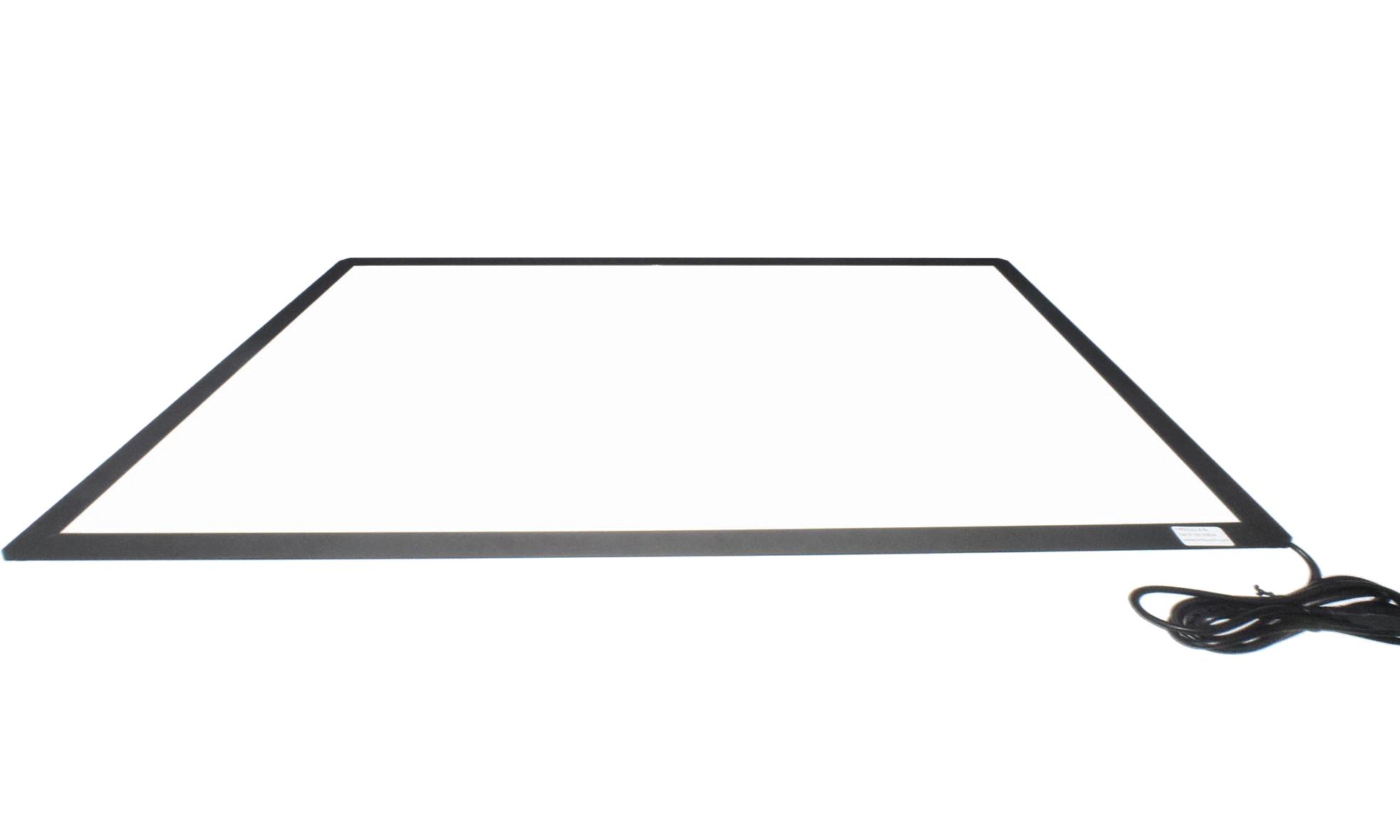

IR multi touch frame
| Supply Ability: | 3,000 Piece/Pieces per Month |
|---|---|
| Shipping: | Air or Sea |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Brand Name: IRMT
- Model Number: S2- 42-10
Specifications
|
Product Name |
S2-series IR Multi-touch Frame |
|
|
Functional Parameters |
Touch Points |
2,4,6,10,16,20 touch points |
|
Interpolation Resolution |
32768 x 32768 |
|
|
Response Time |
First click<16ms |
|
|
Repeated click<6ms |
||
|
SystemStability |
No drift, no change with the environment |
|
|
Min Touch Diameter |
5 mm |
|
|
Touch Accuracy |
± 2mm on more than 95% touch area |
|
|
Protocols |
TUIO, Flash, Windows 8/7 Multi-touch HID, Mac OS X HID and customized protocols |
|
|
OS |
Windows 8/7/Vista /XP, MAC OS X, Linux, Android |
|
|
Optical |
Luminousness |
100% without glass,92% with AR glass,90% withtoughened glass |
|
Reliability |
Temperature |
Working: -20℃~60℃ |
|
Storage: -40℃~85℃ |
||
|
Relative Humidity |
Working: 10%~90%RH |
|
|
Storage: 10%~95%RH |
||
|
Light-proof Capacity |
Resisting lights from all angles |
|
|
Waterproof Capacity |
IP65(optional) |
|
|
Electrical |
Operating Voltage |
+5VDC (range +4.75V~+5.25V) |
|
Power Supply Mode |
USB power supply |
|
|
Power Consumption |
0.5~1.5W |
|
|
Electrostatic Protection Grade |
Air discharge +4KV, contact discharge +2KV |
|
|
Interface |
USB 2.0 (full speed), A type plug |
|
|
Mechanical |
Input Method |
Fingers, stylus, gloves or any other opaque material medium |
|
Touch Activation Force |
No need |
|
|
Safety |
Different toughened glasses can be selected at the request of safety grade |
|
|
Noise |
No |
|
|
Surface |
Plastics |
|
|
Accessories |
Standard Accessories |
Install disk(none-dive without disk), user manual,bill of material |
|
Optional Accessories |
Glass/Toughened Glass/AR Glass, USB extension cable |
|
|
Installation Mode |
Exterior mount |
|
|
Interior mount |
||
