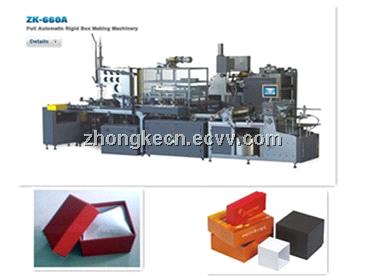

automatic Rigid Box Line(ZK-660A) CE

FOB Price: 150,000.00 - 170,000.00 USD/Set
Supply Ability: 20 Set/Sets per Month
Shipping: 45days after receiving 30% downpayment from ningbo port
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: wooden packing

Quick Details

  • Condition: New
  • Application: Food,Commodity,Machinery & Hardware
  • Packaging Type: Cartons
  • Packaging Material: Paper
  • Automatic Grade: Automatic
  • Driven Type: Mechanical
  • Voltage: 380V
  • Power: 20KW
  • Brand Name: ZHONGKE
  • Model Number: ZK-660A
  • Dimension(L*W*H): 6800X4300X2900mm
  • Weight: 8000KG
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Technical Specification:

Size of the finished box: (125-400mm) ×(85-300mm) ×(20-125mm)

The size of the box is adjustable as long as it is in the above dimension ranges.

Speed up to: 20-25pcs/min

Paper wrap thickness : 100-160 GSM (smooth)

Cardboard blank thickness: 0.8-3mm (The same thickness and smooth)

Electrical power: 380V, 50Hz, 20KW

Dimension: 6800mm(length)×3500mm(width)×2600mm(height)

Weight: 8000kg

Position error: About ±0.5mm

ZK-660A Rigid box maker Features and function:
1. Suitable for all kinds of rigid boxes automatic production
2. Computer control with auto error display and malfunction display.
3. Automatic feeding cover paper and cardboard.
4.24 hours control glue pre-heating
5. Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
6. The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
7. The box-forming unit can automatically collect boxes and deliver them to the forming unit. The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
8. The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is 0.5mm.
9. The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
10. It can automatically diagnose the troubles and alarm accordingly.
11. Remodel for automatic production of different kinds of boxes (optional)
12. Automatic control system for glue viscosity ( America, optional)
