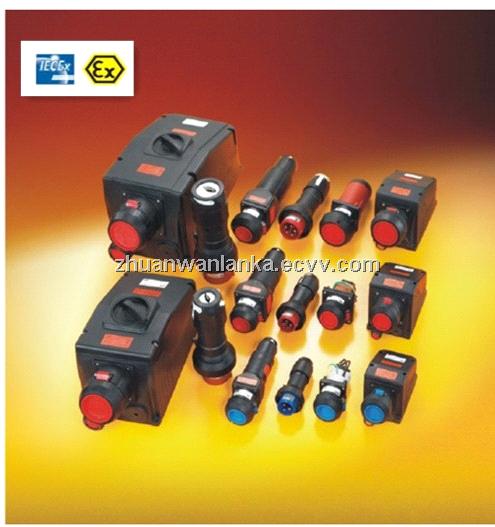

CZ Full plastic Explosion-proof plug and socket

FOB Price:	41.00 - 195.00 USD/Piece
Supply Ability:	10 Piece/Pieces per Day
Shipping:	Normally 7 days
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	standard carton

Quick Details

Brand Name: CZ
Model Number: CZ0252 series

Specifications

Full plastic Explosion-proof plug and socket: 1.Ex mark:Ex ed II CT6 DIP A21 TA,T6 2.Intended use:zone 1,2&21,22 3.IP66

Full plastic Explosion-proof plug and socket feature:
1.Ex mark:Ex ed II C T6 DIP A21 TA ,T6
2.Intended use:zone 1,2&21,22
3.Degree of protection:IP66

4.Ambient temperature use:-40^oC≤Ta≤40^oC

5.Frequency:50/60HZ

6.Rated voltage:up to 690V

7.Rated current:maximum 32A

8.Switch capacity:AC3 up to 690V~/32A

9.Cable entry:Wall type cocket(bottom)1*M40 Φ17-28mm

4,5 poles plug:cable outside diameter:Φ12-28mm

4,5 poles couple type:cable outside diameter:Φ12-28mm

10.Order specifications:

Plug clock h (position) and voltage

Type

Weight(kg)

Order No.

32A-4 Poles

9 clock

200-250V

3P+PE

Wall type socket

Panel type socket

Coupler type

Plug

1.2

0.4

0.7

0.35

CZ0252 4409 0001

CZ0252 8409 0001

CZ0252 3409 0001

CZ0252 7409 0001

6 clock

380/415V

3P +PE

Wall type socket

Panel type socket

Coupler type

Plug

1.2

0.4

0.7

0.35

CZ0252 4406 0001

CZ0252 8406 0001

CZ0252 3406 0001

CZ0252 7406 0001

7 clock

480-500V

3P+PE

Wall type socket

Panel type socket

Coupler type

Plug

1.2

0.4

0.7

0.35

CZ0252 4407 0001

CZ0252 8407 0001

CZ0252 3407 0001

CZ0252 7407 0001

5 clock

600-690V

3P+PE

Wall type socket

Panel type socket

Coupler type

Plug

1.2

0.4

0.7

0.35

CZ0252 4405 0001

CZ0252 8405 0001

CZ0252 3405 0001

CZ0252 7405 0001

32A-5 Poles

6 clock

200-250V

380/415V

3P +N+PE

Wall type socket

Panel type socket

Coupler type

Plug

1.2

0.4

0.7

0.35

CZ0252 4506 0001

CZ0252 8506 0001

CZ025 3506 0001

CZ0252 7506 0001

also have CZ0251(16A); CZ0253(63A),CZ0254(125A) , if need detail pls contact .
