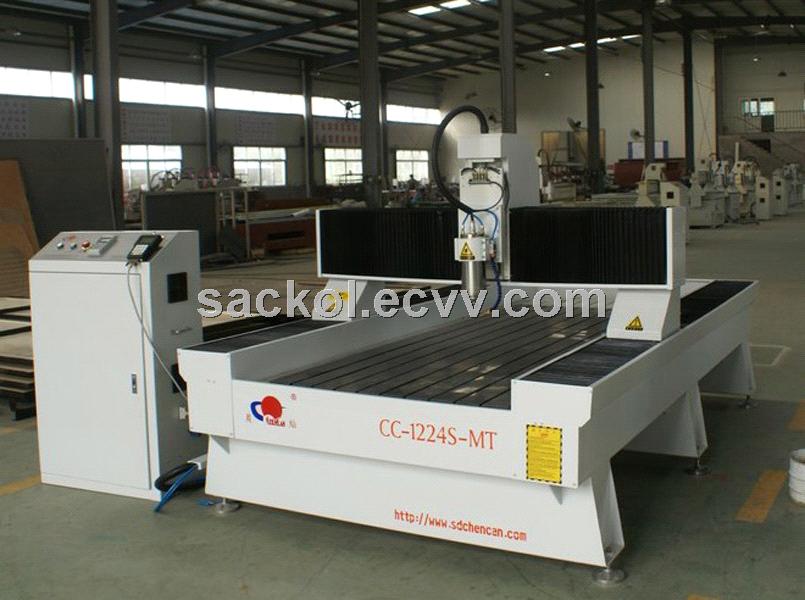

Cnc Water Jet Machine CC-1224S-MT

FOB Price:	6,500.00 - 9,000.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	in 12 workdays, FOB Qingdao , China
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Semiautomatic Chain Link Fence Machine

Price:4,800.00-8,000.00 USD/Set

Min. Order:1 Set
Induction Heating Machine Superaudio Frequency ...

Price:7000.00 USD/Set

Min. Order:1 Set
Steel Weight Making Machine

Price:

Min. Order:
Long Life Stainless Steel Shot

Price:

Min. Order:1 Ton
Umbrella roofing nails making machine

Price:5,200.00-6,450.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Fumigation-free IPPC wooden case

Quick Details

Condition: New
Brand Name: CHENCAN
Model Number: CC-1224S-MT
Voltage: AC380V/50Hz
Rated Power: 3.0KW water cooling
Dimension(L*W*H): 3050*2000*1780mm
Weight: 2000KG
Certification: CE ISO
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
Control system: DSP system
Working mode: Stepper
Dust-collect function: Yes

Specifications

Cnc Water Jet Machine CC-1224S-MT

Applicable Industries:

Stone working: engraving or cutting various marble,granite,bluestone,gritstone,soapstone etc.

Metal working: nonferrous metals like aluminum,brass and so on.

Glass working: various galss.

Features:

1. Lathe bed is welded with thicker square tube and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.

2. Three axes of theStone CNC Routeradopt Hiwin high precision square guide rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw, with high precision and longevity.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

4. Has thefunction of re-carvingafter break point and power failure.

5. Has the function of forecasting process time.

6.The Stone CNC Router adopts advanced DSP system with USB interface, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.

7. The machine has water tank and automatic water cooling system for cutters.

8. Waterproof and dustproof design for the machine protects the transmission parts from broken.

CNC Machine Technical Parameter:

Description	Parameter
X,Y working area	*12002400mm**
Z working area	200mm
Table size	*13402900mm**
Resolution	0.05mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Germany-made ball screw, Hiwin square guide rail
Max. idling speed	30m/min
Spindle motor power	3.0KW water cooling
Spindle rotate speed	0-24000r/min
Working voltage	AC380V/50Hz(optional:220V)
Working mode	Stepper
Driver	YAKO
Command	G code(HPGL,U00,mmg,plt)
Operating system	DSP
Interface	USB
Diameter of cutter	φ3.175-φ12.7
Dust-collect function	Yes
Work-holding	By clamp
Net weight	2000KG
