Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangxi in China
Packaging Details:	Using steel packing .

Quick Details

Brand Name: Oasis

Specifications

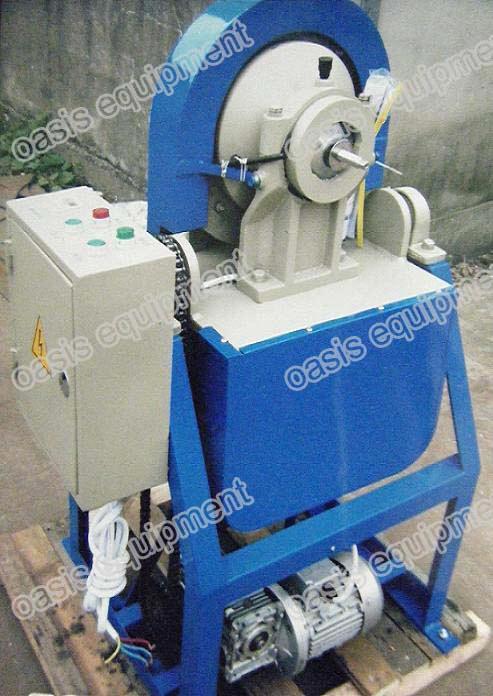

XMB Rod Mill is applicable to laboratory. For wet fine grinding of ore and other materials. Steel ball may be used instead of steel rod in the ball mill. In rod grinding, fine product particle fractions are relatively uniform with rare occurrence of over-grinding and high efficiency. In general, rod grinding is introduced for test on ore for separator and manual fine grinding of placer materials. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards

The grinding equipment, a large amount of feeding, discharging, electric cylinder control, no manual, can also be replaced by steel balls to use bar.

Model			Unit	XMB160/200				XMB200/400			XMB240/300
Cylinder size			mm	160/200				200/240			240/300
Volume			L	4.02				7.5			13.57
Capacity			g	300-800				500-1000			1000-5000
Feed size			mm	2				2			3
Particle size			mm	0.074				0.074			0.074
Drum speed			r/min	120				110			96
rower			kw	0.25				0.55			0.55
The grinding medium	Steel bar	diameter	Mm	18		20		15	18	22	15	18	22
		The length	Mm	185				225			286
		quantity	The root	10			9	17	9	9	33	13	6
		weight	Kg	3.55			4.09	4.9	4.2	4.9	12.7	7.48	5.0
	Steel ball	diameter	mm	20	25		30	20	25	30	20	25	30
		The length	a	100	26		5	136	52	29	290	115	37
		weight	kg	3.3	1.7		0.56	4.4	3.3	3.7	9.57	7.37	4.1
Overall dimensions			mm	1052/530/1160				1052/615/1160			1052/615/1160
Weight			kg	91				150			162
