Hangzhou Qianhe Precision Machinery Co., Ltd.
China Manufacturer with main products: Magnetic Tensioner, Electronic Tensioner, Magnetic Tensioner with Cylinder, Tooling Accessories, Tungsten Carbide Nozzle, Ruby Ceramic... |

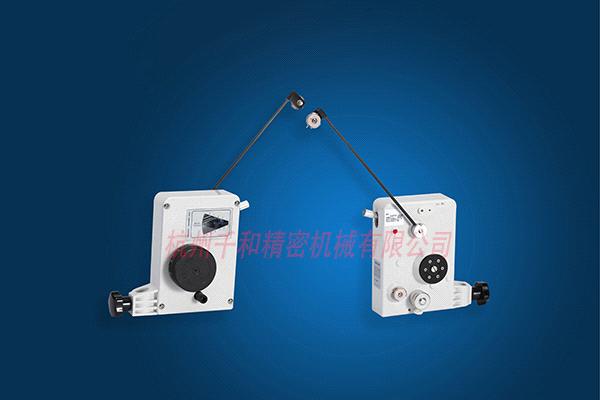

CNC Coil Winding Tensioner(MTC600 Series)
| FOB Price: | 70.00 - 150.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Month |
| Shipping: | 10-15days |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Carton with Foam |
Quick Details
- Brand Name: QIANHE
- Model Number: MTC600
Specifications
Key advantages of Magnetic wire tensioners:
These magnetic tensioners use a device containing a permanent magnet as a non-contact method of generating a variable resistance to rotation of the main wheel of the tensioner, thus maintaining wire tension at the set value for longer periods than their mechanical counterparts with greatly reduced requirement for adjustment.
Types available: MTCSS, MTCS, MTCM, MTCL.MTCLL
? The arm position provides feedback to the system, adjusting the magnetic resistance device to regulate and maintain constant tension during the winding cycle.
? Felt pads provide pre-tension and remove dust and other debris from the winding wire.
? Polished ceramic eyelets and guide rollers at each point of contact protect the insulating enamel from mechanical damage.
? The performance of these magnetic wire tensioners is exceptional given the low cost, providing outstanding value for money.
? Captive roller on tension arm is easy to thread, eliminates chance of losing wire.
Type MTC600
· Used for fine wire (no larger than 0.35mm at normal recommended wire tension)
· Arm position gives feedback to the system, adjusting the main friction wheel to regulate and maintain constant wire tension during the coil winding cycle.
· The tension setting is controlled by adjusting the lower knob, to ensure that the arm operates within its working limits.
· Polished ceramic parts at each point of contact protect insulation and guide the wire.
· Captive roller on tension arm is easy to thread, eliminates chance of losing wire.
· Tension can be set using scale in grams 80gr - 620gr (~0.12mm-0.35mm)
