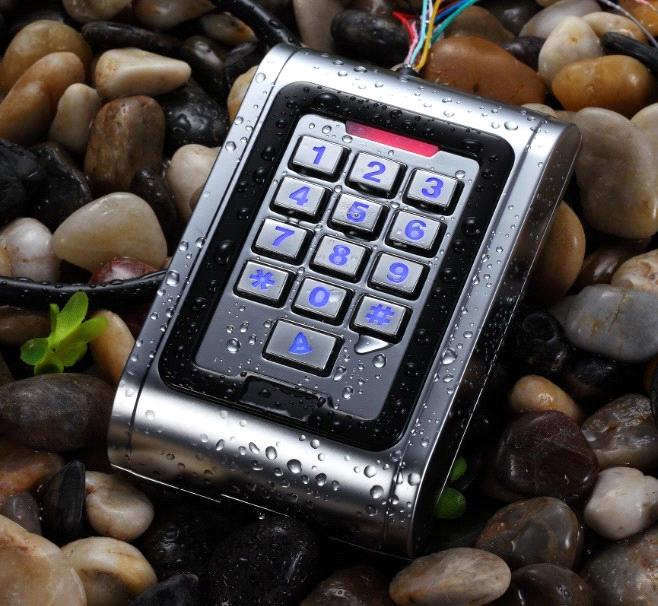

Stand Alone Metal Waterproof Keypad RFID Access Control Machine
| FOB Price: | 44.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Shipping: | 2weeks, Shenzhen or Hongkong Port |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hong Kong in China |
| Packaging Details: | Packed in cartons |
Quick Details
- Brand Name: Koten
- Model Number: S100
- Power Supply: DC/AC9V-28V
- Materials: metal
- Capacity: 2,000Users
- Dimension: 120*80*25(mm)
- IP level: IP68
- Interface: wiegand 26
- Access ways: cards ,code,card &code can be setup
- Capacity: 2000Users
- Low power: static current less than 30mA
- Work Voltage: AC/DC9-28V
- Reading Range: 3~10cm
- Size: 120 *80*25mm
Specifications
Feature:
1. Perfect disign, Metal Case with Luminous keypad, anti-vandal
2. Waterproof Rating IP68.
3. WG26 output, can be used as a Access reader.
4.Capacity:2000 users
5.Access ways: cards ,code,card &code.
6.Low power: static current less than 30mA.
7.Functional keypad: All programming, adding and deleting card/users can be done
via the keypad
8.Open-door time: 0~99 seconds(adjustable)
9.users can reset private passwords.
10.Search fast less than 0.1s .
11.With standard Wiegand interface, Wg26 for card or Wg34 for codes.
12.use keypad to delete lost cards for safety.
13.Short-circuit protect : when relay or alarm output appear short-circuit, the Output will close automatically within 100μS.
Technical parameters
Work Voltage:AC/DC9-28V
Static Current:Less than 30mA
Support Card:EM,Mifare
Reading Range:3~10cm
Capacity: 2000 users
Environment Temperature:-45C~60C
Environment Humidity:10%~90%
Output short-circuit protection time: less than 100μS
Open-door time:0 ~ 99 seconds (adjustable)
Size:120 *80*25mm
