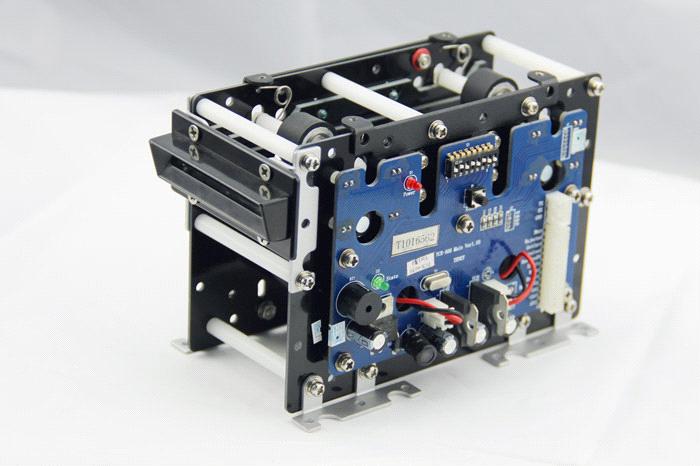

Card collecting/recycling mechanism for automatic Card collector/verifier
| Supply Ability: | 2,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-15working days, Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Packed in carton, inner packed in EPE foam |
Quick Details
- Type: Other
- Brand Name: Koten
- Model Number: KTCR610
- Material: steel
- suitable Card size: Card Width
- Interface: RS232/RS485 or I / O voltage
- Card collecting time: 1s
Specifications
Specification
l Industrial design, good resistance to abrasion and corrosion, fit for high and low temperature environments
l Directly connect to the inductance signal to achievement cards' collection when car is coming
l Provide RS232/RS485 or I / O voltage two control interfaces
l Die-wide production ensure the products' quality and consistency
1.1 Card SizeRangel Card Width: 53 –58 mm
l Card Length: 76 –86 mm
l Card Thickness: 0.2 –1.0 mm(Adjustable) (Default is0.8mm)
1.2 Card MaterialAll kinds of paper cards and PVC / Mylar cards
1.3 Cartridge Sizes and Capacity|
Cartridge Type |
Cartridge Size(mm) |
Shape Size(mm) |
Card capability |
|
|
Max |
Min card thickness1.0mm |
|||
|
H |
108×60×110 |
240×100×145 |
550 |
110 |
|
L |
108×60×80 |
240×100×110 |
400 |
80 |
0.7Kg(Include block pressure card)
1.5 Collect TimeAbout 1.0s
1.6 Electrical Specifications
l Rating Voltage: 24V DC ±10%
l Current Consumption: Peak —1.8Amp
l Static Consumption: 0.1Amp
1.7 Environmental Specificationl Temperature: -40℃to85℃
l Relative humidity: 30%-90%
l Location: Within a suitable cabinet
