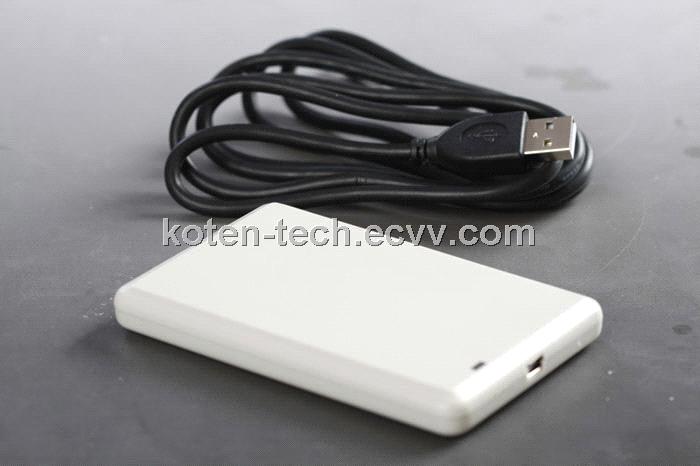

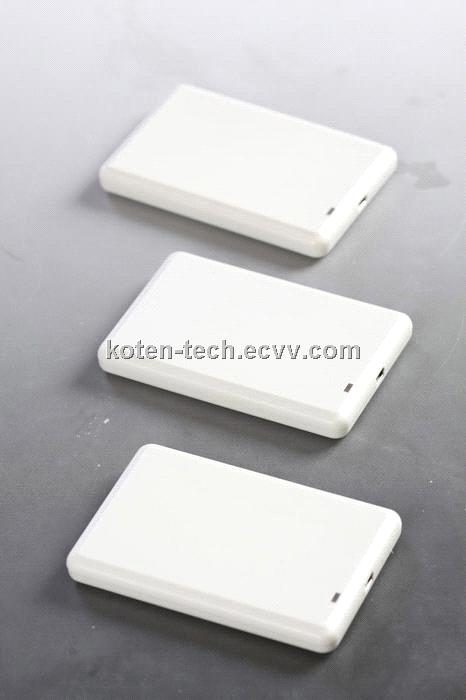

Desktop Passive USB UHF Card Reader/Writer Card Issuer
| Supply Ability: | 2,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-15working days, Shenzhen or Hongkong port |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | packed in carton, packed size: 30*22*13cm |
Quick Details
- Brand Name: Koten
- Model Number: KT-RFID105
- Dimension: 105x70x11mm
- Card Type: ISO18000-6B,EPC CLASS1 G2 standards card/tags
- Communication: USB interface
- Material of shell: plastic
Specifications
FEATURES
l Self-intellectual property;
l Support UHF EPC Gen2(ISO18000-6C), ISO18000-6B protocol tags;
l Advanced tag processing algorithm, high identification rate;
l Built-in antenna with effective distance up to180mm;
l Low power dissipation design;
l Optional USB interface;
l Provide DLL and Demonstration Software Source code to facilitate further development;
l Provide Pocket PC/ PDA demo source code.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
5 |
V |
|
Operating Temp. |
TOPR |
-10~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+80 |
℃ |
l Electrical and Mechanical Specification
Under TA＝25℃, VCC＝+5V unless specified
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
3.3 |
5 |
5.5 |
V |
|
Current Dissipation |
IC |
|
90 |
150 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
120 |
180 |
mm |
* Effective distance depends on protocol, tag and environment
