| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude package |
Quick Details
- Dimensions (L x W x H) (mm): 9445*2496*3453
- Model Number: ZZ3317N3067
- Brand Name: HOWO
- Gross Vehicle Weight: 25000
- Engine Capacity: > 8L
- Fuel Type: Diesel
- Emission Standard: Euro 2
- Transmission Type: Manual
- Condition: New
- Horsepower: 251 - 350hp
- Capacity (Load): 51 - 60t
- Drive Wheel: 8x4
Specifications

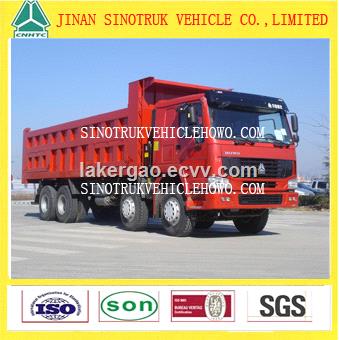

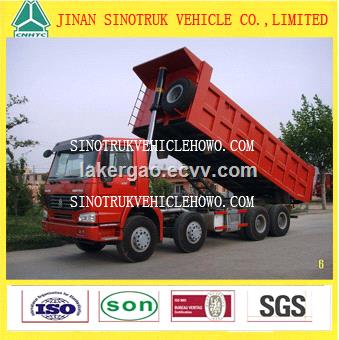

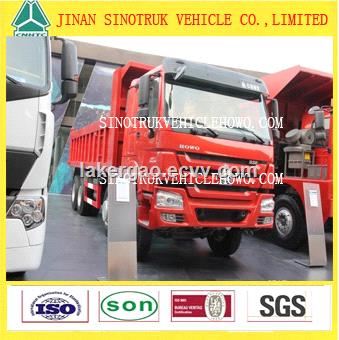

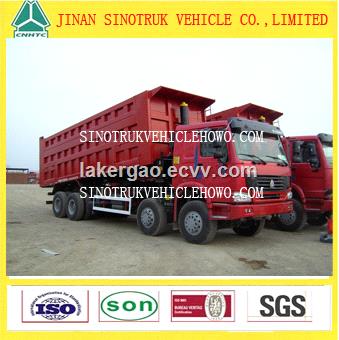

50tons 12-wheel Sinotruck Howo Heavy Dump Truck
50tons 12-wheel Sinotruck Howo Heavy Dump Truck
1.12speed gear box
2.4axles
3.howo brand
4.free spar
|
Model |
ZZ3317N3067 |
|
|
The total mass(kg) |
31000 |
|
|
Engine |
Modle |
WD615.47,371hp Euro II |
|
Engine |
4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbocharging and intercooling |
|
|
Displacement |
9.726L |
|
|
Cab |
HW70 long cab,with air-condition |
|
|
Axle
|
Driving type |
8×4 |
|
Front axle |
HF9 |
|
|
Driving axle |
AC16,double driving axle |
|
|
Steering |
ZF8098 |
|
|
Transmission |
HW19710 10shift gearbox |
|
|
Tire |
12.00-20 |
|
|
Cargo box
|
Size(mm) |
6500×2300×1300 |
|
Form of lifting |
Front lift |
|
|
Thickness |
Floor8mm,side4mm |
|
|
Dimension(mm) |
Overall size |
9445*2496*3453 |
|
Wheel base |
1800+3000+1350 |
|
|
Max speed (Km/h) |
75 |
|
|
Front/rear overhang(mm) |
1500/2080 |
|
|
Approach/Departure angle(°) |
19/23 |
|
