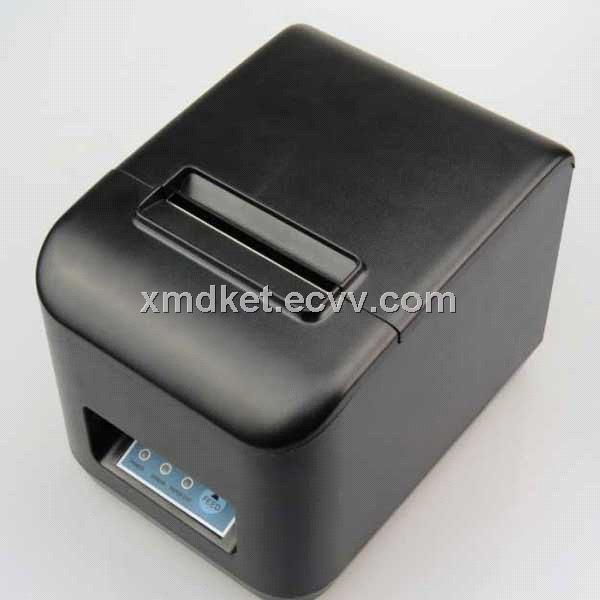

USB thermal pos printer for 80mm width paper autocutter feature (YCP-809)
| FOB Price: | 100.00 - 125.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Day |
| Shipping: | Within 5 days FOB Xiamen by express/air/sea |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Box size: 23*22*17cm /1pcs G.W.:2.5kg Carton size: 46*49*37cm/8pcs G.W.: 19.5kg |
Quick Details
- Type: Thermal
- Style: Black And White
- Use: Receipt printer
- Interface Type: USB
- Max Paper Size: 80mm
- Black Print Speed: 260mm/s
- Color Print Speed: No support
- Max. Resolution: 203DPI (8 dots/mm)
- Brand Name: YoucTech
- Model Number: YCP-809
- Optional interfaces: Serial, LAN, WIFI
- Cutter method: Full or partial cut
- Colors: Black
Specifications
80mm USB thermal receip printer for pos system,
with auto cutter feature of full of partial cut,
very high printing speed max. 260mm/s,
support NV image and graphic logo printing,
sound and light alarm support,
can be mounted on wall,
Optional interfaces: serial, Lan, wifi
|
Item |
Specs |
|
|
Printing |
Method |
Thermal line printing |
|
Speed |
260mm/s |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
72mm (576 dots/line) |
|
|
Paper |
Type |
Thermal paper |
|
width |
50mm~82.5mm |
|
|
Thickness |
0.06~0.09mm |
|
|
Roll diameter |
Max. 83mm |
|
|
Roll core inner diameter |
12.5±0.5mm |
|
|
Order alarm |
Sound |
Yes |
|
Light |
Yes |
|
|
Wall mounted |
No Supported |
|
|
Reliability |
MCBF |
80 million lines |
|
TPH |
160km |
|
|
Interface |
Standard |
Serial+USB+LAN |
|
Option |
LAN, USB+Serial, WIFI |
|
|
Auto cutter |
Method |
Partial/full cut |
|
Life |
1,800,000 cuts |
|
|
Character size |
ANK Character, Font A: 12*24 dots Font B: 9*14 dots Simplified/Traditional: 24*24 dots |
|
|
Barcode type |
UPC –A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODEBAR/CODE39/CODE93/CODE128/ITF |
|
|
Logo download |
Support logo or jpg download tool software |
|
|
Printing command |
ESC/POS command |
|
|
Driver available |
Windows98/2000/2003/XP/Vista/Linux/7/8 |
|
|
Sensor |
Paper End Sensor, Black Mark Sensor, Cover Open Mark Sensor |
|
|
Power supply |
Adaptor |
DC 24V/2.5A |
|
Cashbox control |
DC 12~24V/1A |
|
|
Color |
Black |
|
|
Outline dimension |
18(L)*15(W)*14(H)cm |
|
|
Accessories |
Driver CD for installation software, thermal paper, User manual, interface cable, power cable, power plug |
|
|
After-sales service |
12 months warranty |
|
