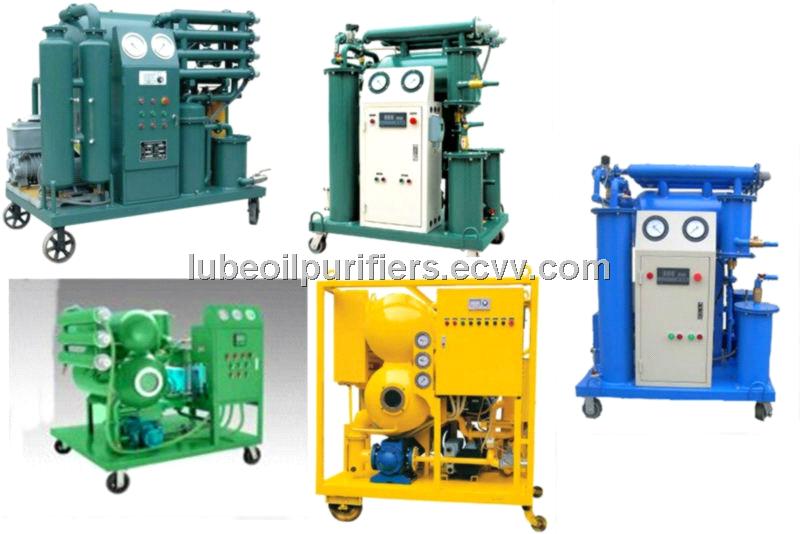

Environmental insulating oil reclamation machine with no pollution,high quality,lash point,viscosity
| FOB Price: | 1.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | by sea,by air,by railway |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | wooden case |
Quick Details
- Condition: New
- Flow: 360L/DAY
- Working Pressure: 0.3mpa
- Brand Name: TOP OIL PURIER
- Model Number: ZY-6 Oil Purifier
- Voltage: 380V
- Power(W): 50HZ
- Weight: 150KG
- Certification: CE;ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Specifications
1.insulating oil reclamation machine2.pressure protective system
3.unique and advanced dewatering,degassing components
Environmental insulating oil reclamation machine with no pollution,high quality,degas,dewater,flash point,viscosity
Application:
Series ZY high vacuum insulating oil purifier is specially designed for purification of aging transformer oil, mutual inductor oil, switch oil, capacitor oil as well as for other electrical insulating liquids. The process maintains the oil's dielectric strength, removes free carbon, soluble water, air-gases and particulate matter.
Features:
1. This machine is small, hi-efficient convenient. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.
2. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
Technical Parameters:
Parameters | Unit | ZY-6 | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 | |
Flow rate | L/h | 360 | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
Vacuum degree | MPa | -0.06~-0.095 | |||||||||
Working pressure | MPa | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |
Temperature range | °C | 20 ~ 80 | |||||||||
Continuous working | H | 150 | |||||||||
Power supply |
| Three phase,50HZ ,380V(or as per customer requirement) | |||||||||
Working noise | dB(A) | 60 | 61 | 63 | 70 | 70 | 75 | 70 | 70 | 70 | |
Heating power | kW | 9 | 11 | 13 | 15 | 30 | 48 | 58 | 70 | 85 | |
Total power | kW | 9.7 | 12.5 | 14.5 | 16.5 | 33.5 | 53 | 65 | 76 | 94 | |
Oil inlet/outlet | mm | φ20 | 25 | φ25 | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | |
Weight | Kg | 150 | 230 | 250 | 270 |
