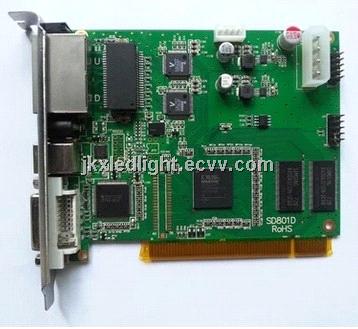

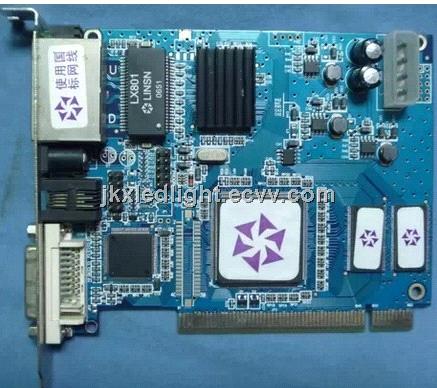

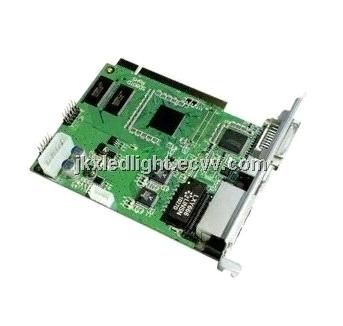

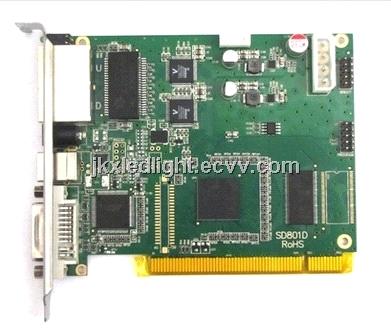

LED Control System Sending Card Tarjeta Sending LINSN TS 801 Sending Card

By point correction, by card (cabinet) correction function

By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256. By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256.

Intelligent identification card function

Intelligent identification procedures can identify double color, full color, virtual, lighting, etc all kinds of various drivers board scanning mode and various kinds of signal , recognition rate reached 99%, a collection in hand, do screen pillow.

65536 level (64 K) gray arbitrary setting function

According to the situation of display customers can arbitrarily set from no gray to level 65536 (64 K), make your screen to achieve the best display effect.

The refresh rate arbitrary setting, phase lock, synchronization function

set arbitrarily from 10 Hz refresh rate-3000 Hz, phase lock function to make the screen refresh lock the computer monitor refresh rate in integer times, put an end to the image rent, ensure perfect image reappearance. Phase lock synchronous range of 47 Hz-76 Hz.

Maximum dots

Double cable with 1280 x1024 dots, the single cable with 1024 X640 1280X512

Double cable heat backup function

The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer have problems, another one automatically replace it, also can be used for one computer with double cable control, when one cable have problems, another one automatically take it over, making the normal work of screen to get maximum security.

Many screens synchronization and composite function


Support a piece of sending card controlling pieces screens, the working state of screens can be arbitrary combination, synchronous

 display, independent broadcasting, can be through the shortcut key, fast switching.

256 level automatically brightness adjustment

A level 256 automatic adjustment function make display brightness adjustment more effective.

Program online upgrade function

If the screen receiving card program needs to be upgraded, need to open display power and update through the LED studio, no need to detach receiving card  from the display.

Break the traditional ideas without dial code switch

No dial code switch design, all Settings through the computer.

Test function

Receiving card integration test function, need not take send card can test display, slash, gray, red, green, blue, and the light, etc many types test mode.

Long distance transmission

Maximum transmission 170 meters (measured), ensure transmission 140 meters.

Supporting software

LED studio
