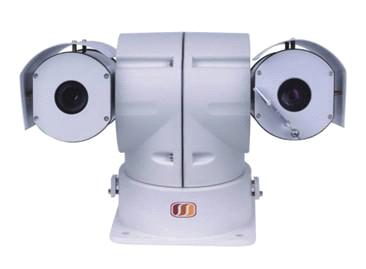

500M HD-SDI Vehicle Laser PTZ

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	2pce per pack

Quick Details

Features:

Horizontal: 0°～360°continuous rotation, tilt: 0°～90°with auto-flip

Horizontal speed: 0.1°～100°/s,vertical speed: 0.1°～60°/s

128 presets, 6 programmable tracks,3 sequence tracks, 3 scanning tracks

Support idle action and humanized focal length

Automatic speed matching function

Display orientation,title of speed dome camera,temperature, alarm and other informations

Power-off memory function

Support OSD menu

HD-SDI output, BNC interface

RS485 control, 500M(laser) night vision

FG-TC200SDI-L500H

Specifications:

Model	FG-TC200SDI-L500H
Lens	F=4.3mm - 129mm, F1.6 - F4.7
View angle	63.7°(Wide)- 2.3°(Tele)
Resolution	1080P/59.94,1080P/50,1080i/59.94,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Min illumination	Day:1.7LUX/1/30sec,night(ICR)0.0005LUX/1/3sec
Day/night mode	Auto/manual
S/N ratio	>50 dB
Focus	Auto/manual
White balance	AWC,indoor,outdoor,manual
WDR	Auto/manual
DNR	Support
Video enhancement	AGC, BLC,Auto exposure,AWB,electronic shutter, mirror, DNR,slow snapshoot ,color enhancement
Privacy masking	Support
Shutter speed	1/1 to 1/10000 sec
Gain control	Auto/manual (–3 dB to +28 dB, 16 steps)
PTZ range	Horizontal: 360° , 0.4° to 100° /s vertical: 90°,0.4° to 60° /s
Preset	128 preset,6 programmable tracks, 3 scanning tracks
PTZ protocol	RS485
Power-off memory	Support
Idle action	Support
Night vision	100M/300M
Alarm in/out	1x in, 1x out(optional)
Video output	BNC(HD-SDI)
Protection grade	IP66
Work environment	-35°C to 55°C , 0～95% humidity(no condense)
Power	AC24V, Max.55W(DC12V is optional)
