Jining Bafang Mining Machinery Co., Ltd.
China Manufacturer with main products: Rock Drill, Guniting Equipments, Pumps, Mining Support Equipments, Mine Car Hardware Tools, Electrical Equipments, Asteners and Other Related... |

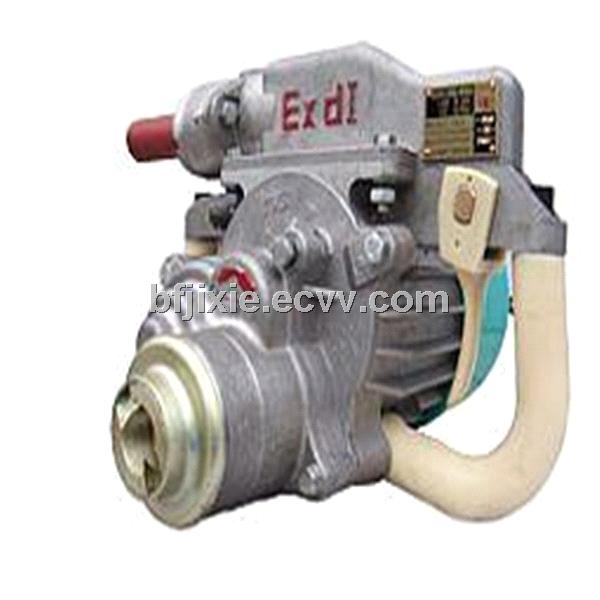

ZM15T High power handheld drilling rig
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Carton or as customs request |
Quick Details
- Condition: New
- Type: Core Drilling Rig
- Usage: Coal
Specifications
Specifications
used for drilling hole
Has all national certificates
high efficiency
suit for different dill bits
Usage:
This is a hand-held drill that can be used in in various mines such coal mine, marble mine, metal mine and rock layer. With the explosion-proof structure it can be safely used for mine where methane and coal dust explosion.
Features:
Low temperature-raising Explosion-proofHigh efficiency and big powerCan be professional customizedModel | ZM12T | ZM15T | ZM18T | |
1 | Motor rated delivered power. KW | 1.2 | 1.5 | 1.8 |
2 | Motor rated voltage. V | 127/220 | ||
3 | Motor rated current. A | 9/6 | 10.5/7 | 14/9 |
4 | Motor rated frequency. HZ | 50/60 | ||
5 | Motor rated speed. r/min | 2820/ | ||
6 | Motor insulation grade | B | ||
7 | Principal axis rated speed. r/min | 520/630 | ||
8 | Electric motor phases | Three phase | ||
9 | Principal axis rated torque. N.m | 22.5 | 27.5 | 32.5 |
10 | Diameter of bore.MM | 33~45 | ||
11 | Cable specification. mm2 | UZ3/4+1/4 | ||
12 | Outline dimension L/W/H. mm | 320/320/290 | ||
13 | Net weight. KG | 15.5 | 16 | 16.5 |
Certificate:
The drill got the MA mark and Explosion-proof Certificate issued by CQST. (CQST is mutual recognition with Norway's NEMKO,Germany's PTB,America's UL\FM, Australian's TESTSAFE,France's LCIE\INERIS,Britain's BASEEFA,Russia's CCVE,Netherlands's KEMA,Japan's TIIS and so on.)
