hydraulic system for dump trucks

FOB Price:	400.00 - 800.00 USD/Set
Supply Ability:	1,000 Set/Sets per Week
Shipping:	FOB shanghai or other requiried place within 30 days
Payment Terms:	L/C, D/A, D/P, T/T, Other, Cash

In Stock

Inquiry Now

Related products from verified members

sinotruk howo tipper truck ZZ3257N3847B

Price:39,000.00-45,000.00 USD/Piece

Min. Order:1 Piece
Sinotruck Howo A7 TRATOR 6*4

Price:

Min. Order:
Dumper Truck ZZT3101

Price:

Min. Order:1 Set
Low Price 30ton SINOTRUK 336hp HOWO Dump truck ...

Price:31,000.00-36,000.00 USD/Unit

Min. Order:1 Unit
Garbage Compress Truck

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Wooden pallet

Quick Details

Brand Name: Jiaheng
Model Number: JHs01
Pressure: 16-25mpa
Application: Dump Trucks

Specifications

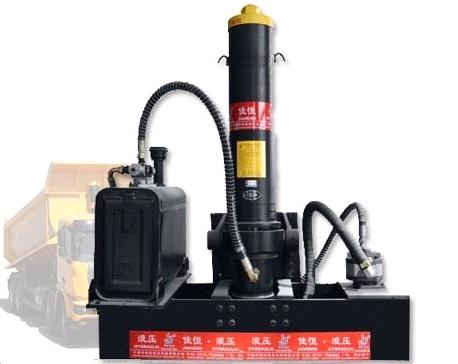

Complete Set of Hydraulic System for Trucks

Product Component
1. Lifting valve: Small size, steady pressure, safe and reliable
2. Gear pump: Small size, strong power, long life
3. Oil tank: Multiple cleaning protection
4. Gas valve: Proportional control and easy manipulation
5. Limit valve: To optimize the process of use and improve the lifting frequency
6. Oil tube: Durable, dust proof, not rust.

Application: Suitable for 6.8-7.2 meter dump truck body
Stroke: 5460mm
Lifting Capacity: 60-95Ton
Piston Rod Stage: 4 stages
Cylinder Inner Diameter: 198mm
Installation Distance: 325mm

List of hydraulic system spare parts
List of hydraulic system spare parts
OEM.NO	Name of Part	Specification	Material name	Quantity
	cylinder assembly	3TG-E152×3830(with outer cover)
02.002.007.0001	Enlarge frame assembly	Model3268	Enlarge frame	1
02.003.001.0002	Upper support	HG081	3271upper support	2
02.003.001.1009	Lower support	HG091D	Butterfly 75 holes lower support	2
02.004.0005	Gear pump	JHCB-6100-A11	Gear pump+ Change valve	1
02.005.0003	The Slow downcombination control valve	MZKQF34	Control valve	1
			φ6 pipe connector	4
			φ6 pipe connector seals	4
			Support for control valve	1
			M6 bolt	4
02.006.002.0016	Oil pipe with accessories	φ32I-3000	Low pressure pipe	1
02.006.001.0043		φ19II-2500b-M36×1.5-M30×1.5T	High pressure pipe	1
02.006.001.0044		φ19II-2600b-M36×1.5	High pressure pipe	1
04.998.00018			φ42-46 pipe strap	2
	Oil tanker with accessories	Reference oiltanker.xlsx.		1
04.083.00003		φ24×3.10	"0" rign	1
04.998.00015			shock absorber	4
04.998.00034	Air tube with accessories		φ6Three way pipe joint	1
04.998.00038	Air tube with accessories	20m	φ6 air tube	1
