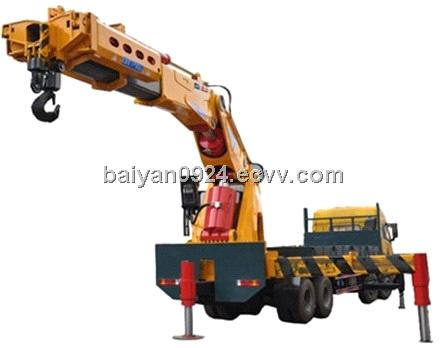

XCMG Front Mounted Truck Crane

FOB Price:	500.00 - 1,200.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	FOB shanghai or other requiried space within 30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Construction crane

Price:

Min. Order:
Used Tadano TG80E Crane

Price:13,000.00-15,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Wooden pallet

Quick Details

Condition: New
Application: city construction, coal mining engineering, gardens Greening for lifting and transporting
Rated Loading Capacity: 30ton
Rated Lifting Moment: 600T.M
Max. Lifting Load: 30tons
Max. Lifting Height: 25m
Brand Name: Jiaheng
Model Number: SQ600
Certification: ISOTS 16949
Warranty: 1 year
After-sales Service Provided: Overseas third-party support available
Color: Yellow, Black, Silver
Lift.Capacity: 30tons
Working Area: 11.6m
Installation Space: 1.45m

Specifications

End mounted truck crane XCMG/ZOOMLIONA

1. The truck mounted crane is named also truck with loading crane. It consists of chassis, packing case (tank), power take-off, and crane.

2. It is widely used in city construction, coal mining engineering, gardens Greening for lifting and transporting the basic construction materials and so on.

3. Our truck mounted truck has compact fixing space, light dead weight, and big loading weight. The design is safe and reliable, nice appearance. Support oil cylinder can be overturned manually, thus improve the Cross-country performance of the whole machine. Planetary lift hoist efficiently decrease the system temperature, fast and smart working speed, very durable truck.
4. The mounted crane can select to equip with DONGFENG, JIEFANG, FOTON, ZHONGQI,

QINGLING, JIANGLING, HUALING HONGYAN, XUGONG and other chassis. 1t, 2t, 3.2t, 4t, 5t, 6.3t, 8t, 10t, 12t, 14t, 16t crane can be equipped according to different machine model. The telescopic straight boom crane and folding type crane are also for your options.

5. Outrigger style: Adopting horizontal telescopic H shape Outrigger, all outriggers can be independently adjusted to regulate the whole frame balance, it has large outrigger span, the whole machine has very good stability.

6. The operation mode: Left and side double side operation, the slewing angle is: ± 360° , continuous slewing, and hand throttle can adjust the slewing speed and lifting speed.

Item	Unit	SQ500ZB4	SQ600ZB4	SQ720ZB4	SQ1600ZB6	SQ2100ZB6	SQ3200ZB6
Max Lifting capacity	kg/m	16500/3.0	20000/3.0	24000/3.0	40000/4.0	52500/4.0	80000/4.0
Max Lifting Moment	KN.M	500	600	720	1600	2100	3200
Crane weight	kg	6250	6900	7150	14100	17900	25500
Installation Space	m	1.45	1.45	1.5	2.54	2.57	2.91
Distance Between Legs	mm	2300-5900	2308-6120	2308-6120	2472-7967	2472-7967	2490-7985
Max Working Radius	m	11.5	11.5	11.47	15.2	13.97	15.44
