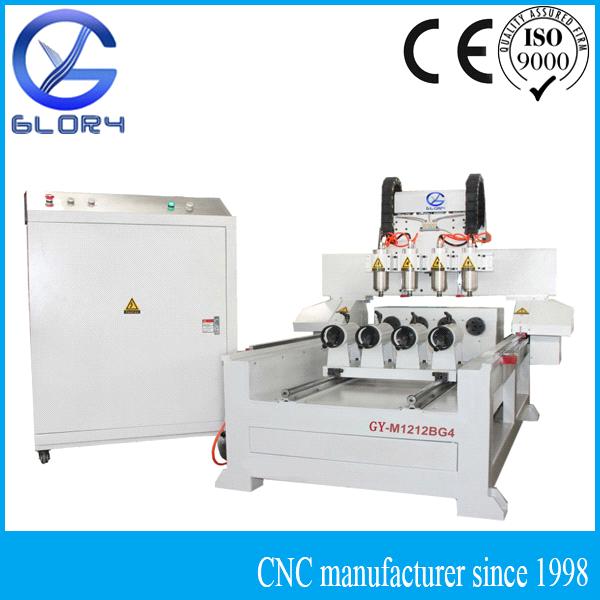

Cylinder Engraving CNC Machine with Four Rotary Axis
| FOB Price: | 15,000.00 - 18,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | within 20 workdays |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | cylinder engraving machine is wrapped with PE, then packed into wooden case |
Quick Details
- Condition: New
- Brand Name: Glory
- Model Number: GY-M1212BG4
- Voltage: 220V/380V
- Power(W): variable
- Weight: 1300kg
- Certification: CE and ISO
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
- keyword: cylinder engraving machine
Specifications
Cylinder working CNC Router,3D Cylinder CNC Router
Key features:
1. Seamless steel lathe bed
2. Germanyball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Stepper motors
7. Manual oil-injection system
8. DSP operating system
9. Gantry movement
10. High soft electric cables
11. French Schneider for small electric parts
12. Water-cooling system
13. Four rotary axes can work independently or synchronously
Ideal for:
Timber/wood/foam/bamboo cylinders, etc.
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
|
SPECIFICATION |
GY-M1212BG4 |
|
Working Diameter |
125mm |
|
Working Length |
1000mm |
|
Machine Dimension |
1800*1450*1450mm |
|
Spindle |
2.2kw |
|
Spindle Speed |
Adjustable 0-24,000 rpm |
|
Tool Change |
Manual Tool-Change |
|
Drive System (X & Y Axes) |
Helical Rack & Pinion |
|
Linear Guide |
Taiwan Hiwin |
|
Drive System (Z Axis) |
Germany ball Screw |
|
Drive Motors |
Stepper motors |
|
Inverter |
Fuling |
|
Driver |
Yako |
|
Command |
G code |
|
Cutter diameter |
φ3.175-φ12.7mm |
|
Maximum Idling Speed |
35m/min |
|
Resolution |
0.01mm |
|
Fixing |
By clamp |
|
Cooling Mode |
Water-cooled |
|
Controller |
DSP handle |
|
Power Requirements |
3-phase 380V/50HZ |
Custom sizes and upgrades for the components are available on request.
Optional parts:
1. Weihong/Syntec controller
2. More rotary axis
3. Automatic oil-injection system
4. Different power requirements
5. Air-cooled system
6. Added T-slot table above the rotary axes, etc.
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. (We suggest you order a few extra consumable parts together with the machine)
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
