Changzhou Pioneer Electronic Co., Ltd.
China Manufacturer with main products: EMI/RFI/EMC Filters, RFI Filters, Noise Filters, Power Line Filters, Low Pass Filters, Honeycomb Filters, Shielding Doors, Becu Finger Gasket |
High Performance Single Phase Filters
| FOB Price: | 1.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Week |
| Shipping: | 1-3 days for sample of EMI filters,3-4 weeks for big order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Outer strong A-A 5 layer carton parcking with shock absorbing PE foam filling to protect the EMI/EMC |
Quick Details
- Brand Name: PIONEER
- Model Number: PE2300
- Type: EMI Filter
- Transfer Function: Low Pass
- Package Type: Surface Mount
- Nominal Center Frequency: 50/60Hz
- Insertion Loss: 100db
- Rated Voltage: 120/250VAC
- Rated Current: 6A~25A
- Operating Frequency: 50/60Hz
- Temperature range: HPF 25/085/21
- Test Voltage(1 min): Line to Ground
- Line to Line: 1450VDC
- Leakage Current(Max): Line to Ground
- Certify: CE
Specifications

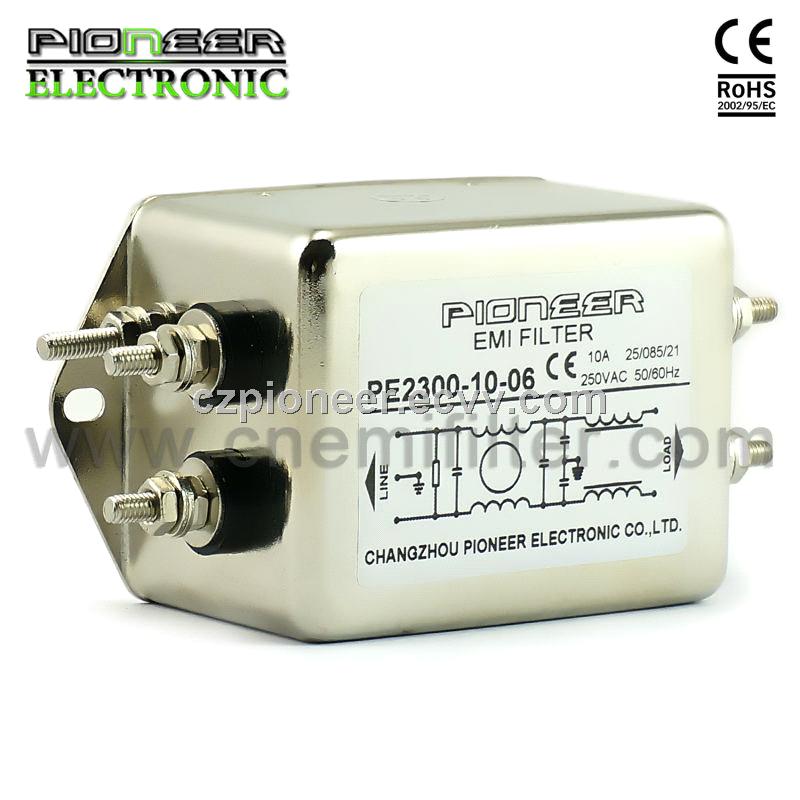

High Performance power filter EMI Filters PE2300
Product Description
-Available for inverter and variable speed motor device,which meet the RFI electromagnetic compatibility of European standarks.
-High Performance with differential mode choke.
-Good low frequency attenuations.
-Custom design acceptable.
Filter Selection Table
| Filter | Rated Current(A) | Rated Voltage(V) | Leakage Current(mA) | Input/Output Connections | Electrical Schematic | Diemension |
| PE2300-6-06 | 6 | 120/250 | 0.5 | 06 | 1 | 1 |
| PE2300-10-06 | 10 | 120/250 | 0.5 | 06 | 1 | 1 |
| PE2300-16-06 | 16 | 120/250 | 1.0 | 06 | 1 | 2 |
| PE2300-25-06 | 25 | 120/250 | 1.0 | 06 | 1 | 2 |
Typical Applications
-Electrical and electronic equipment.
-Various noisy applications requiering good filters performance.
-Inverter .
-Variable frequency drive.
-Building automation.
-Industrial applications.
-Electronic data processing equipment.
Specification
| Rated Voltage | 120/250VAC |
| Rated Current | 6A~25A |
| Operating Frequency | 50/60Hz |
| Temperature range | HPF 25/085/21 |
| Test Voltage(1 min) : Line to Ground | 2000VAC |
| Test Voltage(1 min) : Line to Line | 1450VDC |
| Leakage Current(Max) : Line to Ground | @250VAC 50Hz |
Packaging & Shipping
7-10 days for sample of EMI filters
1-2 weeks for mass production.
Our Services
Professional manufacturer of EMI/EMC filter. Help customer solve EMI problem.
Carton packaging for export, customized packaging acceptable.
Company Information
Changzhou Pioneer Electronic Co., Ltd. is one of the leading professional manufactures in the electromagnetic compatibility (EMC) field.
Our wide range of EMI/EMC filters and related EMC products are widely used in energy-efficient drive systems and electronic motor controls. We have cooperated with a group of world-class customers from all industries at home and abroad market.
Our products with excellent performance can be equivalent to the well-known filters from Europe and America. Our R & D team with over 10 years of professional experience can design the products according to customers` requirements. And our skill workers with long-term commitment and work closely to understand customer's needs and achieve customer's satisfaction.
