>Products Catalog > Analog I/O Module > Remote I/O Module R-8018B 8-ch Thermocouple input module with Modbus

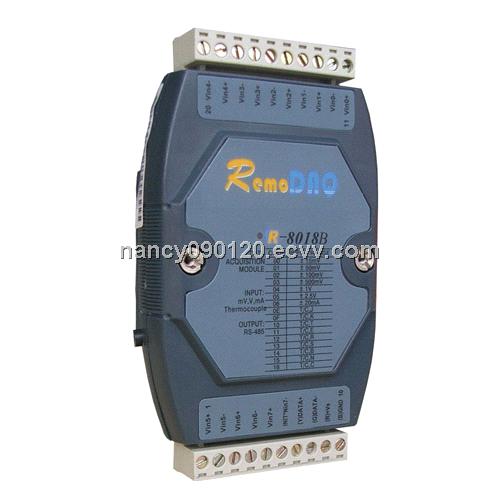

Remote I/O Module R-8018B 8-ch Thermocouple input module with Modbus
| FOB Price: | 114.00 - 134.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece/Pieces per Week |
| Shipping: | 7 days if in store, or 30 days |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | with Anti-static bag |
Quick Details
- Brand Name: Gemotech
- Model Number: RemoDAQ-8018B
Specifications
The RemoDAQ-8018B is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. These modules are an extremely cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages.
Main Feature:
◆ 16-bit resolution | ||
◆ 8 different input | ||
◆ 3000VDC Isolation | ||
◆ Over Voltage protection: ±35V | ||
◆ 10 samples/second | ||
◆ Input type: Thermocouple | ||
◆ Input Range: ±20mA, 4-20mA, J 0-760℃, K 0- | ||
◆ Support Modbus/RTU Protocol | ||
◆ Burn-out Detection | ||
Specification:
| Display | LED Indicators | Power | ||||
| Power Supply | Power Requirement | 10~30 VDC | ||||
| Power consumption | 1.2W/24VDC | |||||
| Analog Input | Resolution | 16-bit | ||||
| Channels | 8 differential | |||||
| Channel Independent Configuration | Yes | |||||
| Direct Sensor Input | J, K, T, E, R, S, B Thermocouple | |||||
| Current Input | ±20 mA , 4-20mA | |||||
| Sampling Rates | 10 samples/second | |||||
| Burn-out Detection | Yes (All T/C) | |||||
| Input Impedance | Thermocouple: 20MOhm Current: 120 Ohm | |||||
| Zero Drift | ±6 μV/℃ | |||||
| Span Drift | ±25 ppm/℃ | |||||
| General | Watchdog Timer | Yes | ||||
| Temperature (Operating) | -20~70 ℃ | |||||
| Humidity | 5~90%, non-condensing | |||||
| Temperature (Storage) | -25~85 ℃ (-13~185 °F) | |||||
| Interface | RS-485 | |||||
| Isolation Protection | 3000 VDC | |||||
| Overvoltage Protection | ±35 V | |||||
| Error Range | ±0.1% | |||||
| Communication Protocol | ASCII command & Modbus/RTU | |||||
| Comm. Distance | Serial: 1.2 km | |||||
