Jinan Licheng District Jichuang Electronics Assembly Plant
China Manufacturer with main products: CNC Router, Laser Engraving Machine, PCB CNC Router, Advertising CNC Router, Mini Laser Engraving Machine, Wood CNC Router, Stone CNC Router,... |
Mini Cnc router
| FOB Price: | 1,900.00 - 2,300.00 USD/Set |
|---|---|
| Supply Ability: | 260 Set/Sets per Month |
| Shipping: | 3-7 days after confirmation of this order |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | free fumigation wooden box |
Quick Details
- Condition: New
- Engraving Area: 600*900*200mm
- Engraving Speed: 8000mm/min
- CNC or Not: Yes
- Cooling Mode: Water Cooling
- Brand Name: Zhuoke
- Model Number: 6090
- Dimension(L*W*H): 150*120*160cm
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- working area: 600*900*200mm
- spindle power: 1.5kw
- gudie way: Linear round gudie rail
- Transmission: China high precision screw
- Engraving command: G code*u00*mmg*plt
- Certification: CE
Specifications

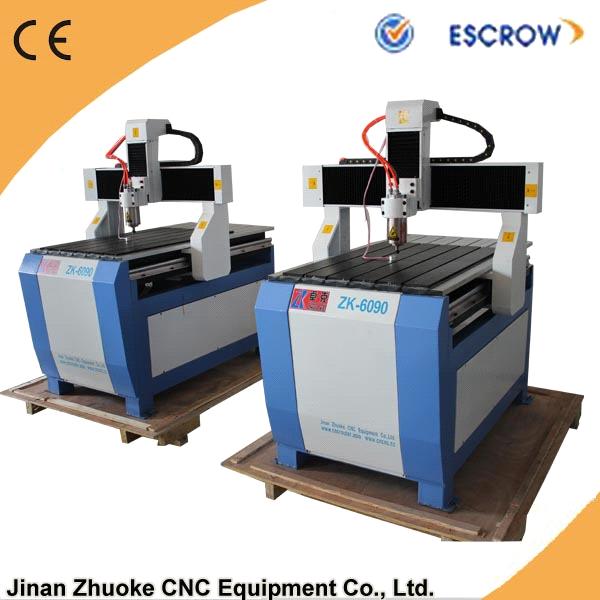

Mini CNC router ZK-6090
Main features
Good rigidity: cast iron machine bed, good stability, long life time.
High accuracy : adopted high accuracy grinding ball screw, linear round ( or square guide way for X Y Z-axis, high performance driver.
Strong cutting force: using China famous brand water cooling spindle ( or can choose air cooling spindle) , low noise, strong cutting force, can ensuring long time mass processing.
Good extensibility: control system, you can choose PCI NcStudio or DSP offline, also can choose rotary axis, dust collector, vacuum table, water tank etc.
Intelligent control : the system control the processing speed, idle speed and cutting speed, improving the processing speed, extending the cutters lifetime, increasing the rate of the finished products.
Breakpoints, power off memory way, ensuring the memory function, can continue processing if cutters break or next day working.
Highsoftwarecompatibility: supportingType3,Artcam,Castmate,Pro-E,Ucancam V9, all kinds of CAD/CAM software. Main Technical Parameters Items Description Items Description XY-axis working area 600*900mm Software operating environment Windows98/2000/xp Z-axis working area 150mm or higher Spindle power 1.5KW(2.2kw) water cooling Transmission mode screw Spindle speed 0-24000rpm/min Guide way Linear round or square guide way Spindle cutter Ф3 Ф4 Ф6 Working table size 700*1250mm Power( without spindle) 300W Biggest feeding height >150 mm Driving mode Stepper motor Biggest travelling speed 7-8m/min Control system PCI NcStudio or DSP offline Biggest engraving speed 4-6m/min Working voltage AC220V/50HZ Repeat positioning accuracy 0.05mm Engraving command G code *u00*mmg*plt Used for advertising signage, label, crystal words processing, refined carving of various pattern, carved furniture, toys and gifts, architects models, decoration industry, plastic light box, and so on. Suitable materials Organic glass, acrylic, ABS, PVC, MDF, double color boards, aluminum composite panel, wooden material, ox horn, marble, copper, aluminum and other non-ferrous metal.
Main applications
