Yanfeng Technology Co., Ltd.
China Manufacturer with main products: LED Bulb Light, T8 LED Tube, LED Spot Light, LED Flood Light, LED Downlight, Ceiling Light, LED Panel Light, LED Street Light |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Foam+White Box+Carton Box |
Quick Details
- LED Light Source: LED
- Install Style: Embeded
- Input Voltage(V): 85-265V
- Lamp Power(W): 9W
- Lamp Luminous Flux(lm): 900
- Lamp Luminous Efficiency(lm/w): 100
- CRI (Ra>): 75
- Color Temperature(CCT): Cool White
- Working Temperature(℃): -20 - 50
- Working Lifetime(Hour): 50000
- Lamp Body Material: Aluminum
- IP Rating: IP44
- Certification: CE,C-tick,EMC,LVD,ROHS,SAA
- Brand Name: Yanfeng
- Model Number: YF-DL-9X1W
Specifications

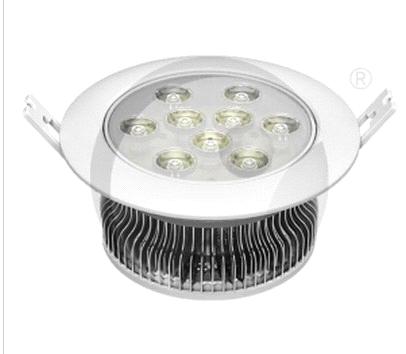

Specification of our Dimmable LED Ceiling Down Light Indoor Lighting:
1. LED Downlight Power Consumption: 9X1W
2. Light Source: 9PCS of 1W Power LED
3. Main Material: Aluminum House with PMMA Lens
4. Input Voltage: AC 85-265V
5. Output Current: 350mA
6. Light Color: Cool white/Natural white/Warm white/Blue/Green/Red/Yellow
7. Lens Beam Angle: 15/30/45/60 degree
8. Product Size: ? 135*H75mm
Other Parameter of our Dimmable LED Ceiling Down Light Indoor Lighting:
1. Operation Temperature: -20~ 50 Celsius degree
2. Ambient Temperature: Less than 60 Celsius degree
3. Color Temperature: 2700-9000 K (Optional)
5. Power Factor: ≥ 0.9
6. Brightness Decay: 3%-5% at 1000 hours
7. Luminous flux: 860-950lm
Feature of our Dimmable LED Ceiling Down Light Indoor Lighting
1. New and elegant design, more close to the traditional downlight design.
2. High bright 1W LED, available in Warmwhite: 2700-3200K, Natuer White: 4000-4200K, Cool white: 6500-7000K.
3. Complete and thick Aluminum housing for better heat send out
4. Low temperature after long-time light up
5. Long lifespan, a strong shock-resistant ability, environmental protection, a wide range of color temperatures and high stability.
Application of our Dimmable LED Ceiling Down Light Indoor Lighting:
The products is suitable for use as feature decoration in places such as malls, homes, shop cabinets, counters, ads, signboards of restaurants and so on. As well as partial lighting for offices and reading rooms, it is especialy suitable for jewelry and fashionable dresses
Trade Term of our Dimmable LED Ceiling Down Light Indoor Lighting:
1. Payment: TT 30% as deposit before production, 70% balance before shipment
2. Delivery time: 100~500PCS: 10days, 500~1000PCS: 20days
3. Sample can be delivered in 3 days
4. Shipping freights are quoted under your requests
5. Warranty: 2 years
Our service of our Dimmable LED Ceiling Down Light Indoor Lighting:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. OEM & ODM are welcomed, OEM brand is available.
4. Protection of your sales area, ideas of design and all your private information.
| LED Downlight | |||||
| Model No. | Power | LED | Lumen | Beam Angle | Dimension |
| YF-DL-20X1W | 20W | 20X1W | 2000lm | 30/45/60° | ? 160*H100mm |
| YF-DL-18X1W | 18W | 18X1W | 1800lm | 30/45/60° | ? 160*H100mm |
| YF-DL-15X1W | 15W | 15X1W | 1500lm | 30/45/60° | ? 140*H100mm |
| YF-DL-12X1W | 12W | 12X1W | 1200lm | 30/45/60° | ? 135*H75mm |
| YF-DL-9X1W | 9W | 9X1W | 900lm | 30/45/60° | ? 135*H75mm |
| YF-DL-7X1W | 7W | 7X1W | 700lm | 30/45/60° | ? 110*H70mm |
| YF-DL-5X1W | 5W | 5X1W | 500lm | 30/45/60° | ? 110*H70mm |
| YF-DL-3X1W | 3W | 3X1W | 300lm | 30/45/60° | ? 85xH45mm |
| Remarks: | |||||
| Working Voltage | 85-265V AC | ||||
| Color Temperature |
Warm White: 2700K-3000K Neutral White: 4000K-4500K Cool White: 5500K-6500K |
||||
| Driver | External Power Supply | ||||
| LED | Epistar | ||||
| Certificate | CE & RoHS | ||||
| Lifespan | 50, 000Hours | ||||
| Warranty | 2 years replacement for defective items | ||||
| OEM & ODM | Available | ||||
| MOQ | 100pcs | ||||
| Packing | Foam+White Box+Carton Box | ||||
| Shipping Time | Deliver in 5-12days according to items and quantity | ||||
| Shipping Way | DHL/UPS/AIR/SEA, FOB Sea Port: Shenzhen, China | ||||
| Payment | T/T, Western Union and PayPal | ||||
