Ningbo Dayou Machinery Co., Ltd.
China Manufacturer with main products: Tube Bending Machine, Tube Expanding Machine, Automatic Hairpin Bender, Vertical Tube Expanding Mahcine, Mechnical Spare Parts, CNC Pipe... |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East |
|---|
Quick Details
- Condition: New
- Structure: Tube Heat Exchanger
- Certification: CE,UL
- Warranty: 1 year
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications

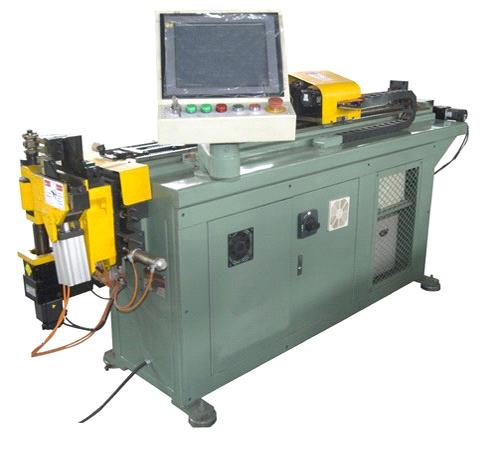

The CNC universal tube bender is widely used in air-conditioning industry, motorcycle industry, furniture industry and other industries. It can bend various of pipes, tubes and bars into their three-dimensional shape.
Model | CUB15 | CUB30 | CUB50 | |
Max. OD, mm | 19.0 | 32.0 | 50.8 | |
Max.WT, mm | 1.5 | 2.3 | 3.5 | |
Max.R, mm | 50 | 100 | 200 | |
Max.Bending Angle, ° | 185 | 185 | 185 | |
Max. Feeding Length, mm | 1400 | 1500 | 1500 | |
Max. Inserting Length, mm | 2000 | 3000 | 4000 | |
Speed | Bend °/s | 36～180 | 12～60 | 6～36 |
Feeding mm/s | 100～1000 | 80～800 | 60～600 | |
Rotate °/s | 36～180 | 30～150 | 24～120 | |
Power | Bending Motor, kw | 1.0 | 3.8(Or Hydraulic) | 10(Or Hydraulic) |
Feeding Motor, kw | 0.75 | 1.0 | 1.0 | |
Rotate Motor, kw | 0.4 | 0.5 | 0.5 | |
Total Power, kw | 3.0 | 6.0(10.0) | 13.0(18.0) | |
Power Supply | 3-Phase 4-Wire; AC380V; 50HZ. | |||
Note : Details of technical parameter are subject to customer's needs. | ||||
