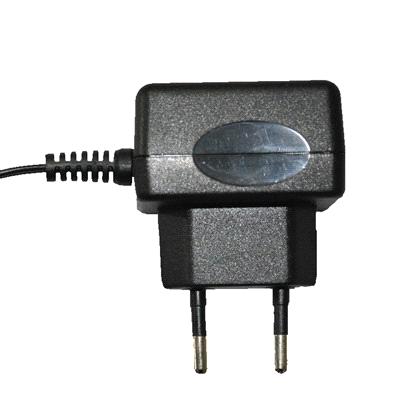

24V CE switching adapter

Specifications

24V 0.2A EU model wall mount style switching adapter1. Input Characteristics:    1.1. Input voltage & Frequency


	Minimum	Nominal	Maximum
Input Voltage	90Vac	100Vac ~ 240Vac	264Vac
Input Frequency	47Hz	60Hz/50Hz	63Hz

    1.2. Input AC current:
           0.20A @ 100-240Vac input & full load

    1.3. Inrush Current(Cold start)
           30A Max @ 264Vac input

    1.4. Average Efficiency:
           72.02% min. @ Nominal input

    1.5. Energy Consumption
           ≤0.1W Nominal input and no load condition
2. Output Characteristics:    2.1. Static Output Characteristics<Vo & R+N>
           Rated Output: 24V
           Rated Load: min. 0.1A; max. 0.2A
           Output Range: 22.8~ 25.2V
           R+N: 240mV

           Ripple & Noise: Measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 10uF electrolysis capacitor.(test under the condition of rated input and rated output)

    2.2. Line/Load Regulation:
           Rated Output: 24V
           Rated Load: min. 0.1A; max. 0.2A
           Line Regulation: ±2%
           Load Regulation: ±5%

    2.3. Turn-on delay time:
           3S max @ 100-240Vac input & full load

    2.4. Hold-up time:
           10mS min. @ Full load & 115Vac/60Hz input turn off at worst case
3. Protection Requirements:    3.1. Over Current Protection:
           Over current point limeted: 0.3A Max.(100-240Vac); The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed.

    3.2. Short Circuit Protection:
           The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed.
4. Environment Requirements:    4.1. Operating Temperature and Relative Humidity
           Operating temperature: 0℃ to +40℃
           Operating relative humidity: 0% RH to 90% RH

    4.2. Storage Temperature and Relative Humidity
           Storage temperature: -20℃ to +80℃
           Storage relative humidity: 5%RH to 95%RH non-condensing

    4.3. Vibration:
           10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1 Hour for each of the perpendicular axes X, Y, Z

    4.4. Drop in:
           Height: 1m; the product should be fell off on the hardwood with the thickness of 20mm, and the hardwood should be put on the base of the cement or on the ground without flexibility. Apply two times on all surface.
5. MTBF:    Use it at 25℃ environmental temperature, typical input voltage and full load: 50000Hours
6. Life:    Use it at 25℃ environmental temperature, typical input voltage and typical load: above 2 years
    Use it at 40℃ environmental temperature, typical input voltage and typical load: above 1 years
7. Safety And EMC Requirement:    7.1. Dielectric Strength(Hi-pot)
           Primary to secondary: 3000Vac/10mAmax/60 seconds(1-3 seconds for production)

    7.2. Insulation Resistance
           1000MΩ min. at primary to sencondary add 500Vdc test voltage
